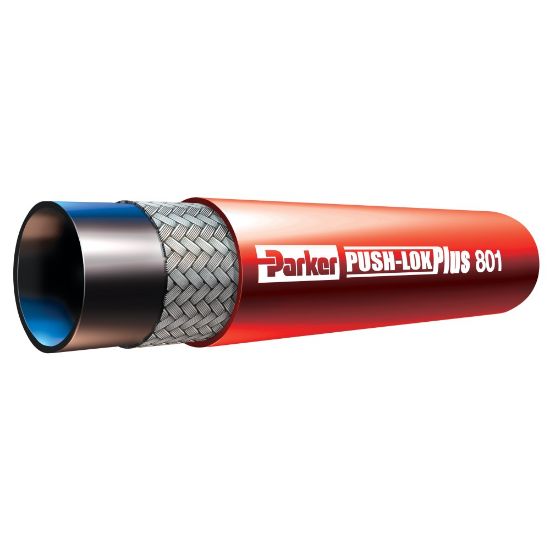

Parker 801-12-RED - Push-Lok Plus Multipurpose Hose 200-350 PSI – 801 Hose

Parker's 801 hose has a pressure range of 200-350 PSI, and is amongst the Push-Lok Plus multipurpose hose line which features the widest fluid compatibility, application range and size range in the industry.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 801-12-RED

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Design Factor	4:1
Specifications Met	N/A	Maximum Operating Pressure	300 psi
Size	-12	Inside Diameter	3/4 inch
Outside Diameter	1.030 inch	Cover Material	Synthetic Rubber
Hose Inner Tube Material	Synthetic Rubber	Nominal Hose Inside Diameter	19 mm
Application	Petroleum Base Hydraulic Fluids	Hose Reinforcement Material	1 Braid of Fiber
Media	Coolants	Weight	0.24 lb/ft
Vacuum Pressure Rating	15 Inch-Hg	Minimum Bend Radius	180 mm
Compatible Fitting	82 Series	Maximum Operating Temperature	257 °F (Oil)
Minimum Operating Temperature	-40 °F (Oil)	Hose I.D. (size)	-12
Color	Red
