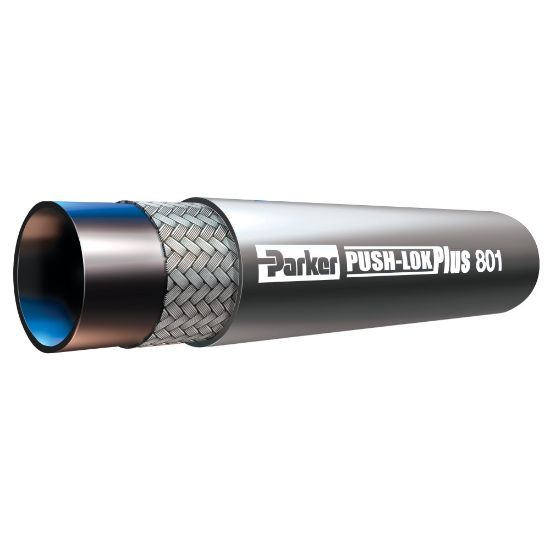

Parker 801-12-GRA - Push-Lok Plus Multipurpose Hose 200-350 PSI – 801 Hose

Parker's 801 hose has a pressure range of 200-350 PSI, and is amongst the Push-Lok Plus multipurpose hose line which features the widest fluid compatibility, application range and size range in the industry.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 801-12-GRA

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Design Factor	4:1
Specifications Met	N/A	Size	-12
Inside Diameter	3/4 inch	Outside Diameter	26.2 mm
Hose Inner Tube Material	Synthetic Rubber	Nominal Hose Inside Diameter	19 mm
Application	Petroleum Base Hydraulic Fluids	Hose Reinforcement Material	1 Braid of Fiber
Vacuum Pressure Rating	15 Inch-Hg	Weight	0.36 kg/m
Media	Lubricants	Cover Material	MSHA Approved
Compatible Fitting	HY Series	Maximum Operating Pressure	2.1 MPa
Minimum Bend Radius	7 inch	Maximum Operating Temperature	85 °C (Water)
Minimum Operating Temperature	-40 °C (Oil)	Color	Gray
Hose I.D. (size)	-12
