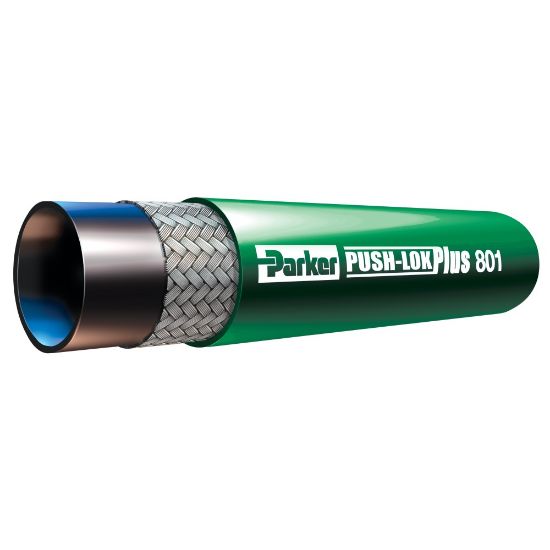

Parker 801-10-GRN - Push-Lok Plus Multipurpose Hose 200-350 PSI – 801 Hose

Parker's 801 hose has a pressure range of 200-350 PSI, and is amongst the Push-Lok Plus multipurpose hose line which features the widest fluid compatibility, application range and size range in the industry.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 801-10-GRN

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Design Factor	4:1
Specifications Met	N/A	Maximum Operating Pressure	300
Minimum Bend Radius	6	Size	-10
Inside Diameter	5/8	Weight	0.19
Hose Inner Tube Material	Synthetic Rubber	Application	Lubricating Oils
Hose Reinforcement Material	1 Braid of Fiber	Outside Diameter	0.910
Nominal Hose Inside Diameter	16	Cover Material	MSHA Approved
Compatible Fitting	HY Series	Maximum Operating Temperature	158 °F (Air)
Vacuum Pressure Rating	15	Media	Air (Compressed Air with traces of Oil)
Minimum Operating Temperature	-40 °C (Oil)	Color	Green
Hose I.D. (size)	-10
