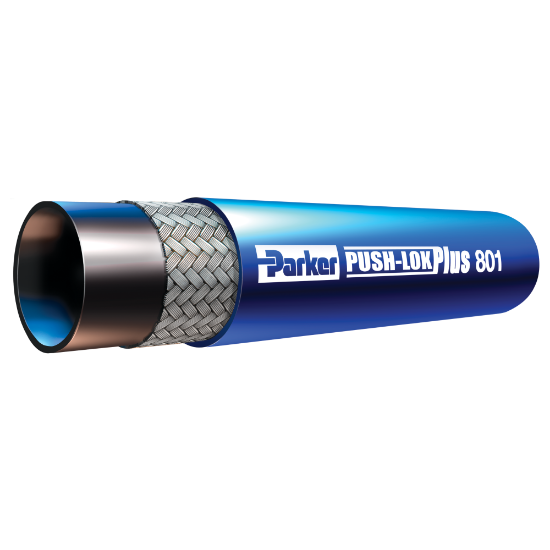

Parker 801-10-BLU - Push-Lok Plus Multipurpose Hose 200-350 PSI – 801 Hose

Parker's 801 hose has a pressure range of 200-350 PSI, and is amongst the Push-Lok Plus multipurpose hose line which features the widest fluid compatibility, application range and size range in the industry.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 801-10-BLU

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Design Factor	4:1
Specifications Met	N/A	Maximum Operating Pressure	300 psi
Minimum Bend Radius	6 inch	Size	-10
Hose Inner Tube Material	Synthetic Rubber	Nominal Hose Inside Diameter	16 mm
Application	Antifreeze Solutions	Hose Reinforcement Material	1 Braid of Fiber
Media	Coolants	Outside Diameter	0.910 inch
Weight	0.28 kg/m	Vacuum Pressure Rating	15 Inch-Hg
Inside Diameter	16 mm	Cover Material	MSHA Approved
Compatible Fitting	HY Series	Maximum Operating Temperature	85 °C (Water)
Minimum Operating Temperature	-40 °C (Oil)	Color	Blue
Hose I.D. (size)	-10
