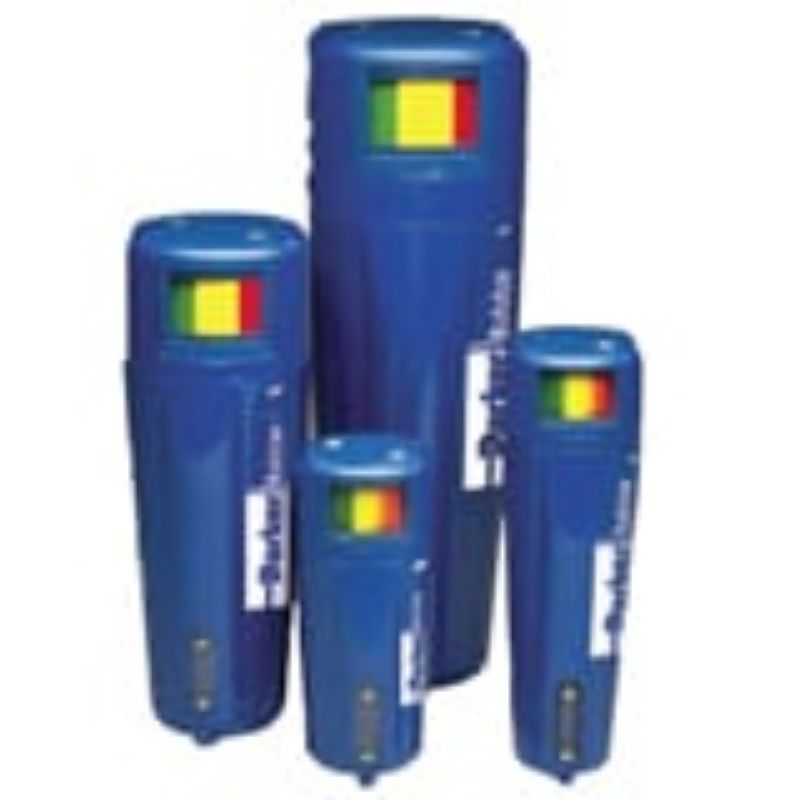

Parker 8003N-0A0-SA - Balston 2000 Series Compressed Air Filters

Parker Balston 2000 series compressed air and gas filters remove contaminants at an efficiency of up to 99.99% for 0.01 micron particles and droplets.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 8003N-0A0-SA

$0.01

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Port Type	NPT
Division	Industrial Gas Filtration and Generation Division	Maximum Operating Pressure	250 psig
Port Size	3/8 inch	Micron Rating	0.01 MICRON
Height	8.5 inch	Weight	0.9 kg
Minimum Operating Temperature	-100 °C	Width	25.4 mm
Maximum Operating Temperature	129 °F	Drain Port Size	n/a
Efficiency Rating	99.9999+ %	Maximum Flow Rate	25 CFM
Compatible Element	5/100-12-SA	Optional Accessories	Drain Plugged, no DPI
Materials of Construction	Head: Anod Alum, Bowl: Anod Alum, Internals: Nylon, Seals: Buna-N	Port Size	0.375"
Connection Type	NPT	Brand	Balston
Product Type	Single Stage Filter

Product resources

Literature and Reference Materials
