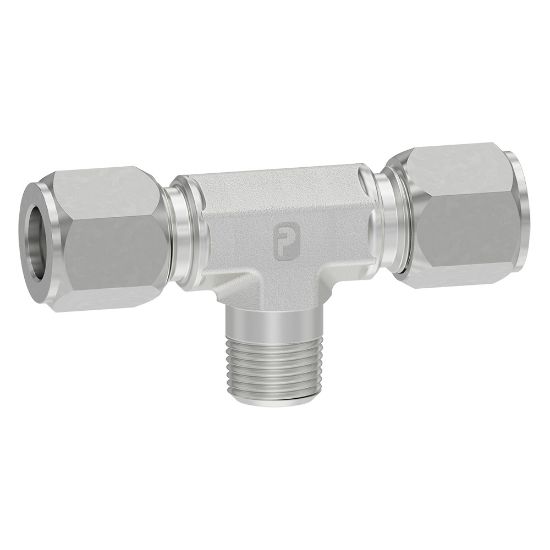

Parker 8-8-8 SBU-SS - Ferulok 24° Flareless Fittings

Parker's Ferulok 24° Flareless fittings create a visible heavy bite allowing easy inspection and a rear compression grip which firmly holds the nut and tubing, dampening the effects of vibration.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 8-8-8 SBU-SS

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Connection 4 Size	na	Connection Type	Flareless Bite Type
Connection 4 Tube Outside Diameter	na	Dimensional Weight	0.12464028776978417 lb
Division	Tube Fittings Division	Maximum Dynamic Pressure	5000 psi
Specifications Met	SAE J514	Body Material	Stainless Steel
O-ring	na	Connection 1 Tube O.D. (inch)	1/2
Connection 2 Thread Size (inch)	na	Connection 2 Style	Male Flareless Bite Type
Connection 2 Tube O.D. (inch)	1/2	Connection Style	Branch Tee
Shape	Tee	Connection 3 Tube O.D. (inch)	na
Connection 3 Style	Male NPT	Body Material	Stainless Steel
Connection 1 Style	Male Flareless Bite Type	Connection 3 Thread Size (inch)	1/2-14
