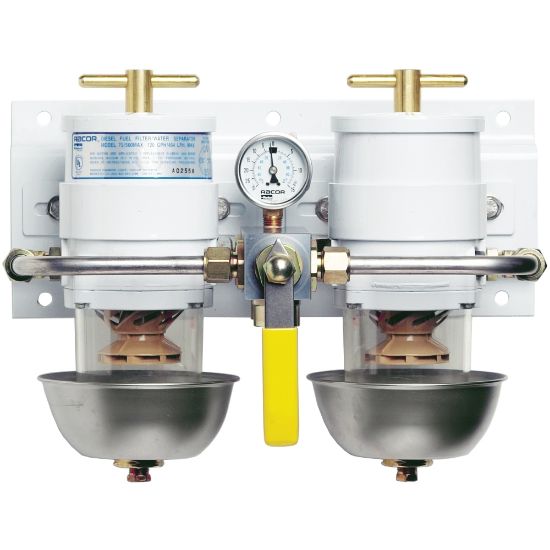

Parker 75500MAXP30 - Marine Fuel Filter Water Separator – Racor Turbine Series

The Racor Marine Fuel Filter Water Separator Turbine Series is a UL-approved filtration system that offers maximum protection of diesel engine components by effectively removing contaminants from fuel, such as water, silica, sand, dirt, and rust.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 75500MAXP30

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Connection Type	3/4"-16 UNF-2B SAE 1926 O-Ring Boss Female	Brand	Racor
Division	Engine Mobile Original Equipment Division	Application	Marine Filtration
Catalog Number	See RSL0313	Series or Model Replaced	Active Part
Valve Type	4-Way Valve	Location	North America and EMEA regions
Flow Rate	120 gph (454 lph)	Bowl Type	Bowl: Clear Engineering Plastic with Stainless Steel Shield
Part Type	500 Marine Dual Turbine Assembly with Water Probe	Product Type	500 Marine Filter Series
Micron Rating	98% @ 30 Micron
