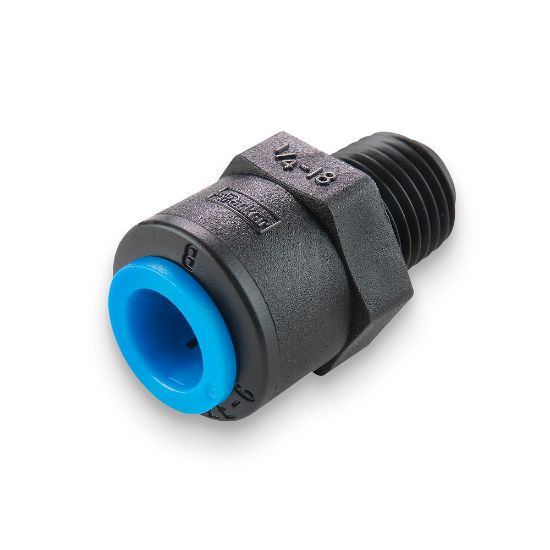

Parker FB6MCVC4-HBLU-15 - TrueSeal Acetal & Kynar Check Valves - Push to Connect

Parker's Push-to-Connect check valves are manufactured from either acetal or kynar material and allow liquid to flow in one direction.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FB6MCVC4-HBLU-15

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Connection 2 Size	1/4 inch Tube O.D.	Body Material	PVDF (Kynar)
Shape	In-Line	Valve Configuration	One Way
Connection 2 Type	NPTF Thread	Gripping Ring Material	Stainless Steel
Cracking Pressure	1.5	Maximum Operating Temperature	250
Connection 1 Size	3/8 inch Tube O.D.	Application	Potable Water
For Fluid Type	Water	Division	Fluid System Connectors Division
Connection Type	n/a	Seal Material	Fluorocarbon
Configuration	Tube to Tube	Maximum Operating Pressure	300
Minimum Operating Temperature	-17.8	Connection 1 Type	Push-to-Connect
Cracking Pressure	1.5 Psi	Body Material	Kynar®
Connection 2 Thread Size	1/4"	Connection 1 Tube Outside Diameter	3/8" (O.D.)
Configuration	Tube to NPTF	Collet Material	Blue

Product resources

Literature and Reference Materials

Water & Beverage Products Quick Reference Guide - Water-QRG (PDF)
