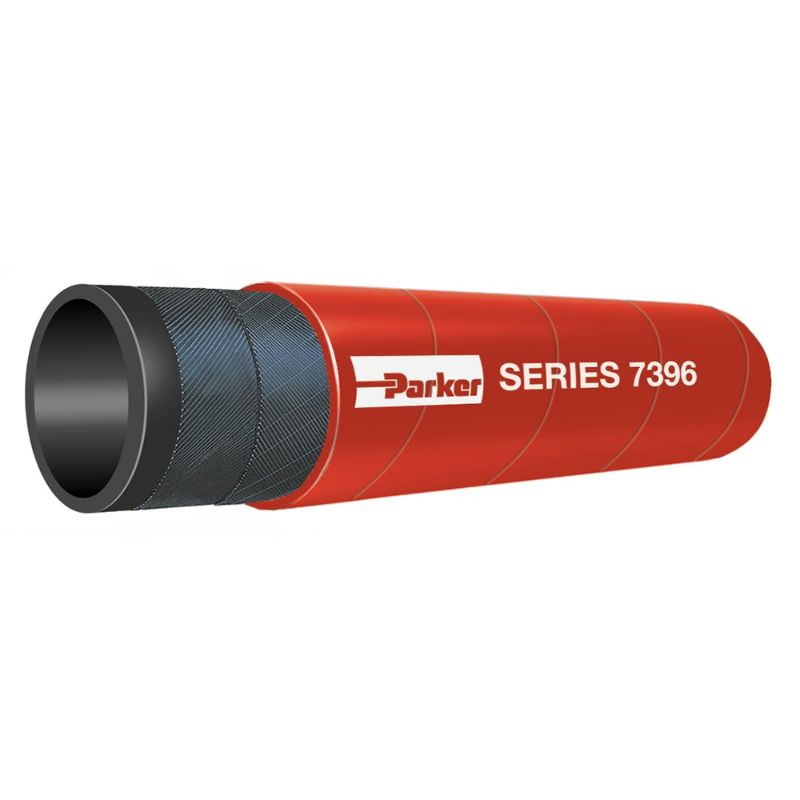

Parker 7396-125300200 - SUPER MPT® II Nonconductive Multipurpose Oil Resistant Hose, Series 7396

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Availability:	Quote Required
Partner Available:	169 In Stock

Brand Parker

Part No. 7396-125300200

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	FT	Division	Hose Products Division
Maximum Operating Pressure	300 psi	Package Type	Coil
Application	Air	Cover Color	Red
Inside Diameter	31.8 mm	Hose Reinforcement Material	2 Plies of Textile
Media	Lubricants (Oils)	Weight	1.18 kg/m
Cover Material	Chloroprene Rubber (CR)	Hose Inner Tube Material	Nitrile
Minimum Operating Temperature	-20 °F	Outside Diameter	45.7 mm
Compatible Fitting	71 Series	Cover Structure	Wrapped
Minimum Bend Radius	190.5 mm	Maximum Operating Temperature	70 °C (Air)
Specifications Met	ARPM Class C Tube (non-conductive)	Hose I.D. (inch)	1-1/4
Standard Pack Qty (ft)	200	Maximum Working Pressure (psi)	300

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
