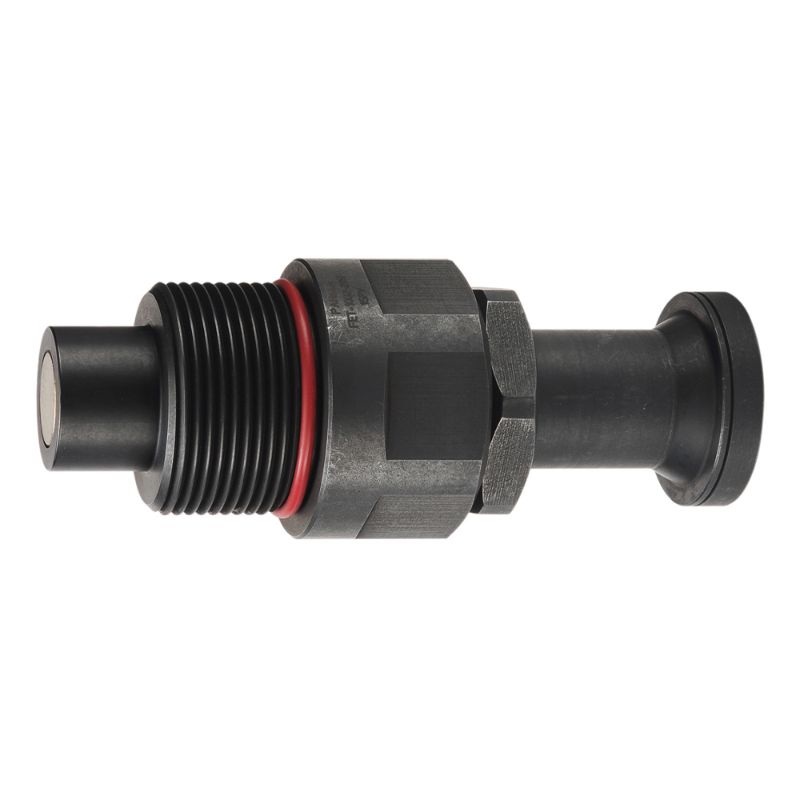

Parker FET-1002-20SF - Connect under Pressure, Heavy Duty, Hydraulic Flat Face Quick Couplings - FET Series

Parker's FNC coated, steel high-pressure, non-spill, screw to connect hydraulic couplers can connect under pressure for use in heavy duty, high impulse hydraulic applications where fluid lines require fast and easy connection and disconnection.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FET-1002-20SF

$410.08

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Polyurethane/Nitrile
Product Type	Thread to Connect	Minimum Operating Temperature	-40 °F
Hex Size 1	65 mm	Division	Quick Coupling Division
Maximum Operating Temperature	250 °F	Plating Type	Black FNC Coating
Dimensional Weight	0.23297841726618707 lb	Valve Type	Non-spill
Application	High Impulse Hydraulics	Hex Size 2	2-3/16 inch
Body Material	Steel	Connection Thread Size (inch)	na
Coupling Half	Male Nipple	Connection Type	Code 62 Flange head
Body Size (inch)	1	Body Material	Steel
Maximum Operating Pressure	6000
