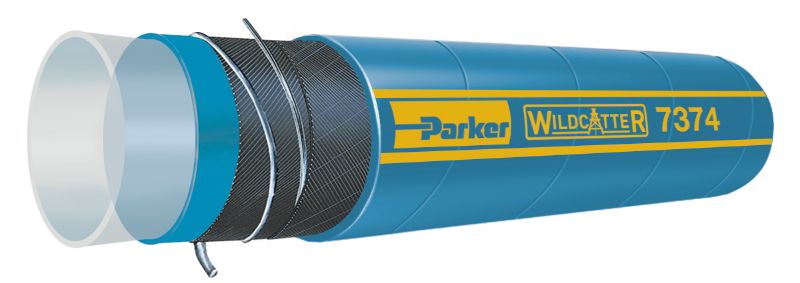

Parker 7374-1250 - WILDCATTER® Oilfield High Pressure Chemical Hose, Series 7374

Wildcatter Oilfield High Pressure Chemical Hose is designed for suction, discharge and transfer of acids, chemicals and solvents in applications to 180°F and 600 psi, Series 7374

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7374-1250

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Minimum Operating Temperature	-40 °C
Design Factor	4:1	Specifications Met	N/A
Cover Material	Ethylene Propylene Diene Monomer (EPDM)	Package Type	Coil
Length per Package	100 ft	Minimum Bend Radius	5 inch
Application	Oilfield	Cover Color	Blue
Maximum Operating Temperature	180 °F	Inside Diameter	31.8 mm
Compatible Fitting	n/a	Maximum Operating Pressure	27.6 bar
Cover Structure	Wrapped	Vacuum Pressure Rating	Full
Weight	1.24 kg/m	Media	Solvents
Hose Inner Tube Material	Ultra High Molecular Weight Polyethylene (UHMWPE) (UHMWPE)	Outside Diameter	46.9 mm
Hose Reinforcement Material	Multiple Plies of Textile with Dual Wire Helix	Hose I.D. (inch)	1-1/4
Maximum Working Pressure (psi)	400

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
