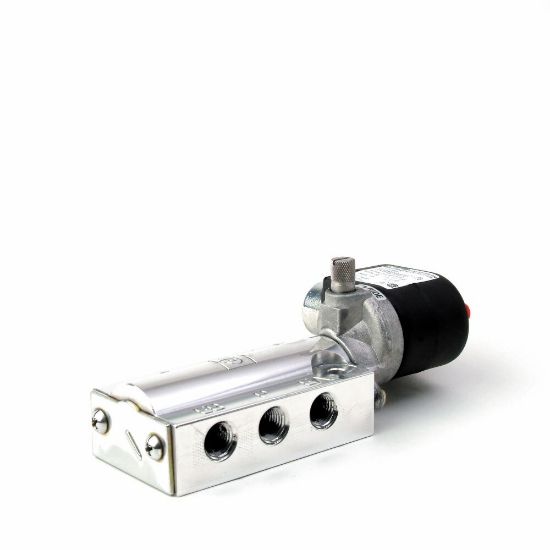

Parker 73419AN2NN00N0L111C1 - 9 Family - 4 Way (5/2) Standard-Duty VAP Valves

These durable, yet economical aluminum 4-way (5/2) valves are used to actuate double acting cylinders and pilot larger process control valves in diverse industries.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 73419AN2NN00N0L111C1

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Fluid Control Division	Port Type	NPT
Seal Material	NBR	Input Voltage	12.0
Actuation Type	Internally Piloted	Insulation Class	Class F
Specifications Met	UL, CSA Listed General Purpose Valve; CE - Low Voltage, EMC	Ingress Protection Rating	N/A
Maximum Pressure Differential	150.0	Maximum Ambient Temperature	167.0
Body Material	Aluminum	Port Size	1/4
Power Consumption	10.0	Coil Type	1/2" NPT Conduit with 18" Leads
Media	Air, Inert Gas	Function	2 Position, Single Solenoid
Valve Type	4 Way (5/2)	Orifice Size	1/4
Minimum Pressure Differential	30.0	Installation	IOM 7403
Main Flow Coefficient	1.0	Override Functionality	N/A
Maximum Fluid Temperature	167.0	Preventive Maintenance Kit	7K901

Product resources

Literature and Reference Materials

Tube Seal (PDF)
