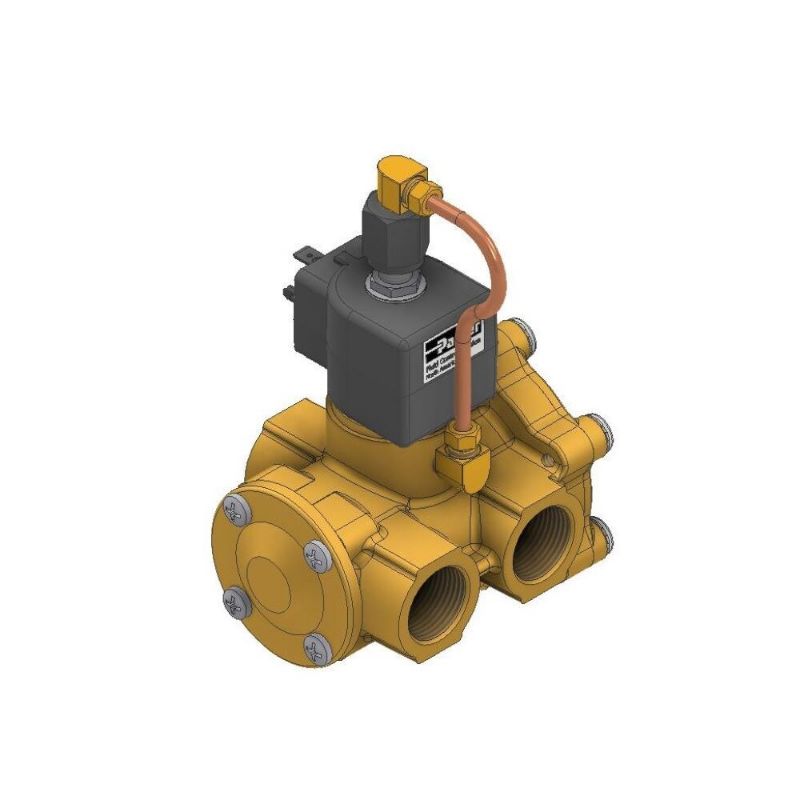

Parker 73312BN52NJ0N0D100C2 - Parker 3-Way Normally Closed, 3/4" NPT General Purpose Solenoid Valves

Parker 3-Way Normally Closed, 3/4" NPT Solenoid Valves provide operating pressures of 180 psi and flow factors of 7.3 CV's. They offer a brass body, multiple mounting positions and coil options for all general purpose flow control applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 73312BN52NJ0N0D100C2

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Port Type	NPT	Input Voltage	24.0
Port Size	3/4	Body Material	Brass
Division	Fluid Control Division	Media	General Purpose for Air
Function	Normally Closed (NC)	Coil Type	DIN Form A, Class F
Valve Type	3-Way	Seal Material	NBR
Orifice 2 Size	n/a	Number of Ports	3
Flow Coefficient 2	n/a	Coil Specifications Met	Class F
Minimum Fluid Temperature	0	Maximum Fluid Temperature	185
Exhaust Flow Coefficient	n/a	Exhaust Orifice Size	n/a
Actuation Type	Manual	Product Series	7000 Series
Power Consumption	10 W (DC)	Maximum Pressure Differential	180 psi (DC)
Minimum Pressure Differential	10	Additional Options	Exhaust Return Pipe
Main Orifice Size	3/4	Main Flow Coefficient	7.3
Coil Type	DIN Form A, Class F	Voltage (V)	24 VDC
Power (Watts)	10 Watt (DC)	Maximum Pressure Differential (psi)	180 psi (DC)

Product resources

Literature and Reference Materials

73312/73322/73382 Installation, Operation & Maintenance Instructions (PDF)
