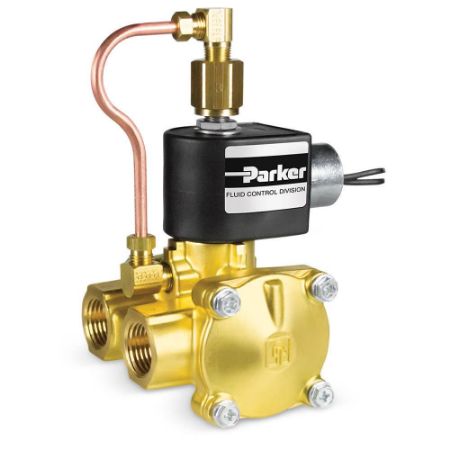

Parker 3-Way Normally Closed, 3/4" NPT General Purpose Solenoid Valves

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

AFP Industries stocks this Parker series for quote or purchase, with interchange support and southeast warehouse availability.

Parker's 3-Way Normally Closed, Direct Acting 3/4" NPT Solenoid Valves are used in a wide variety of applications ideally suited for low to medium pressure applications that do not require a minimum operating pressure differential. Ideally suited for general purpose air, liquids and gases, these valves are available in brass and stainless steel construction. Coil options are available in 1/2" NPT Conduit and DIN Form A in Class F and H or NEMA 4X, 7 or 9 specification.

Markets:
• Commercial Equipment
• Food & Beverage
• Industrial Automation
• Oil & Gas
• Process Control
• Transportation

Features/ Benefits:
• High Quality Standards of Skinner® and Gold Ring™ Brand
• Modular Design
• Long Life
• Tight Shutoff

Applications:
• Single acting spring return cylinder control
• Selection or diversion of process media
• HVAC damper control
• Instrumentation Equipment
• Pneumatic positioning
• Automatic dispensing equipment
• Gas sampling
• Small compressors
• Water treatment
• Air dryers
• Analyzers and Diagnostic Equipment
• Medical and Dental Equipment
• Portable Welding Equipment
• Spraying Equipment
• Lubrication Equipment
• Textile and Dry Cleaning Equipment
• Irrigation Equipment

View as Grid List

Sort by

Display per page

Action	Part No.	Availability	Partner Available	Price	UOM	Seal Material	Actuation Type	Exhaust Flow Coefficient	Maximum Pressure Differential	Power Consumption	Main Orifice Size	Port Type	Maximum Fluid Temperature	Minimum Fluid Temperature	Valve Type	Exhaust Orifice Size	Function	Flow Coefficient 2	Additional Options	Product Series	Orifice 2 Size	Coil Type	Coil Specifications Met	Media	Number of Ports	Division	Main Flow Coefficient	Port Size	Body Material	Minimum Pressure Differential	Input Voltage	Voltage (V)	Power (Watts)	Coil Type	Maximum Pressure Differential (psi)
	73312BN52NJ0N0C222P3	Quote Required	Quote Required	TBD	EA	NBR	Manual	n/a	180 psi (AC)	10 W (AC)	3/4	NPT	185	0	3-Way	n/a	Normally Closed (NC)	n/a	Exhaust Return Pipe	7000 Series	n/a	1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X	NEMA 4X	General Purpose for Air	3	Fluid Control Division	7.3	3/4	Brass	10	110/50-120/60	110/50-120/60	10 Watt (AC)	1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X	180 psi (AC)
	73312BN52NJ0N0H111P3	Quote Required	Quote Required	$968.52/each	EA	NBR	Manual	n/a	180 psi (AC)	10 W (AC)	3/4 inch	NPT	185 °F	0 °F	3-Way	n/a	Normally Closed (NC)	n/a	Exhaust Return Pipe	7000 Series	n/a	1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9	NEMA 7	General Purpose for Air	3	Fluid Control Division	7.3 Cv	3/4 inch	Brass	10 psi	110/50-120/60	110/50-120/60	10 Watt (AC)	1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9	180 psi (AC)
