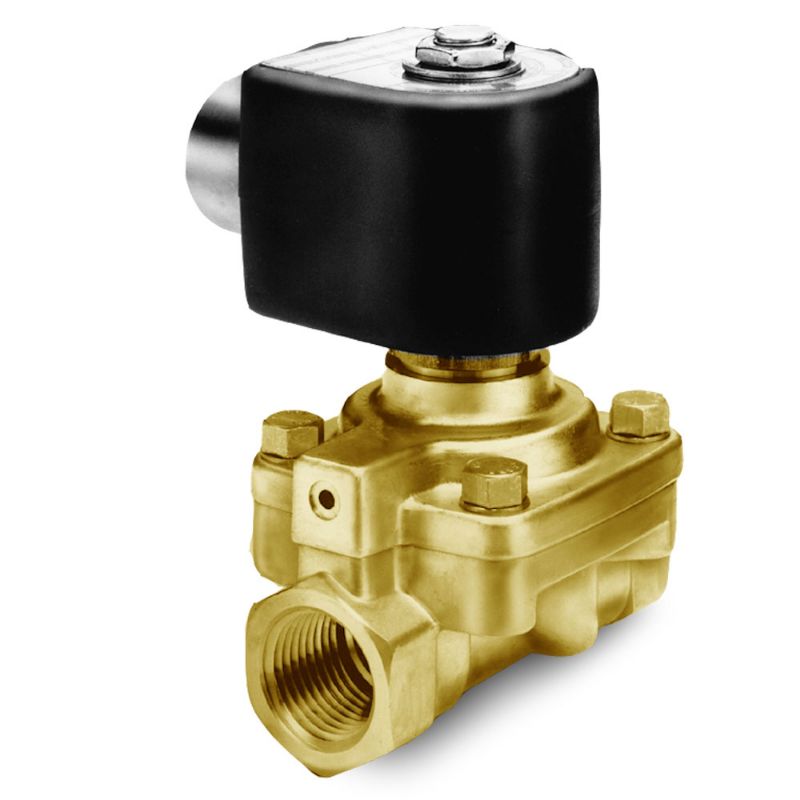

Parker 7321GBN88N00N0H322C2 - Parker 2-Way Normally Closed, 1-1/2" NPT General Purpose Solenoid Valves

Parker 2-Way Normally Closed, 1-1/2" NPT Solenoid Valves provide operating pressures up to 230 PSI and flow factors up to 29 CV's. They offer brass bodies, multi-mount options and Class F or H or NEMA 4X, 7 or 9 coils for all flow control applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7321GBN88N00N0H322C2

$0.01

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Port Type	NPT
Input Voltage	24.0	Body Material	Brass
Division	Fluid Control Division	Port Size	1-1/2
Media	General Purpose for Air	Function	Normally Closed (NC)
Valve Type	2-Way	Seal Material	NBR
Orifice 2 Size	n/a	Number of Ports	2
Flow Coefficient 2	n/a	Minimum Fluid Temperature	0
Minimum Pressure Differential	5	Maximum Fluid Temperature	185
Maximum Pressure Differential	230	Power Consumption	22
Actuation Type	Manual	Product Series	7000 Series
Coil Type	1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9	Coil Specifications Met	NEMA 9
Orifice 1 Size	1-9/16	Flow Coefficient 1	29
Voltage (V)	24 VDC	Coil Type	1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9
Power (Watts)	22 Watt (DC)	Flow Factor 1 (Cv)	29
Maximum Pressure Differential (psi)	230 psi (DC)	Orifice 1 Size (inch)	1-9/16
