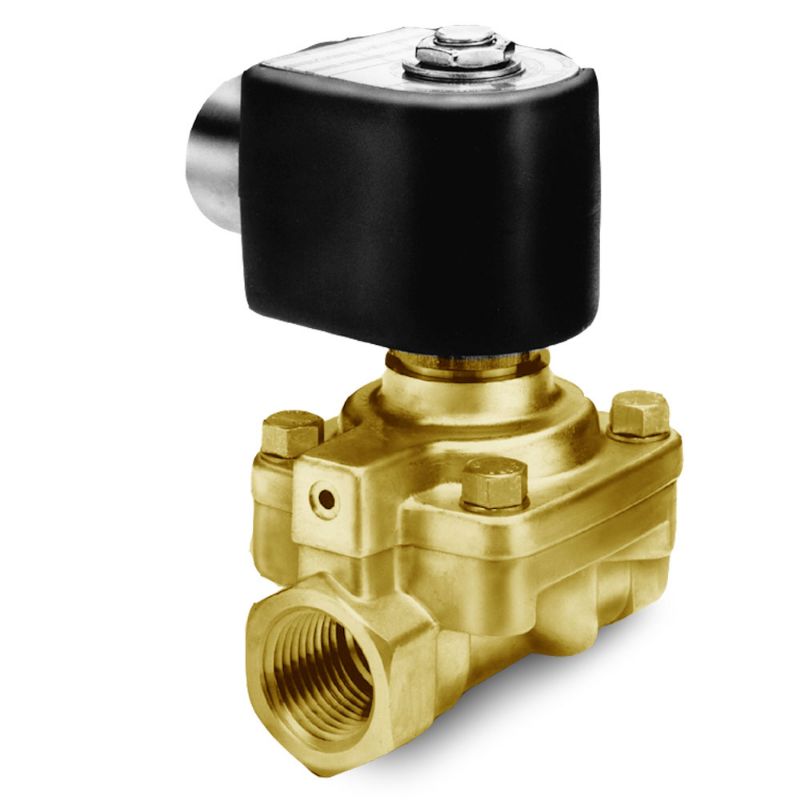

Parker 7321GBN88N00N0C111C2 - Parker 2-Way Normally Closed, 1-1/2" NPT General Purpose Solenoid Valves

Parker 2-Way Normally Closed, 1-1/2" NPT Solenoid Valves provide operating pressures up to 230 PSI and flow factors up to 29 CV's. They offer brass bodies, multi-mount options and Class F or H or NEMA 4X, 7 or 9 coils for all flow control applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7321GBN88N00N0C111C2

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Port Type	NPT	Body Material	Brass
Port Size	1-1/2 inch	Division	Fluid Control Division
Media	General Purpose for Air	Function	Normally Closed (NC)
Coil Type	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	Valve Type	2-Way
Input Voltage	24.0 VDC	Seal Material	NBR
Orifice 2 Size	n/a	Number of Ports	2
Flow Coefficient 2	n/a	Coil Specifications Met	NEMA 4X
Minimum Fluid Temperature	0 °F	Minimum Pressure Differential	5 psi
Power Consumption	10 W	Maximum Fluid Temperature	185 °F
Maximum Pressure Differential	200 psi	Actuation Type	Manual
Product Series	7000 Series	Orifice 1 Size	1-9/16 inch
Flow Coefficient 1	29 Cv	Coil Type	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
Voltage (V)	24 VDC	Maximum Pressure Differential (psi)	200 psi (DC)
Power (Watts)	10 Watt (DC)	Flow Factor 1 (Cv)	29
Orifice 1 Size (inch)	1-9/16
