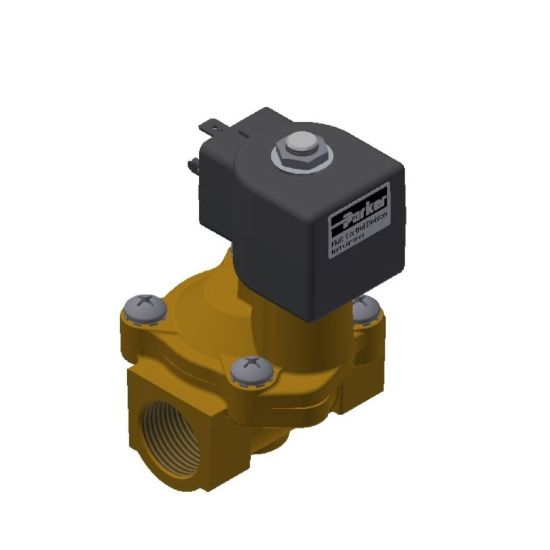

Parker 73218BN87N00N0D100C2 - Parker 2-Way Normally Closed, 1-1/2" NPT General Purpose Solenoid Valves

Parker 2-Way Normally Closed, 1-1/2" NPT Solenoid Valves provide operating pressures up to 230 PSI and flow factors up to 29 CV's. They offer brass bodies, multi-mount options and Class F or H or NEMA 4X, 7 or 9 coils for all flow control applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 73218BN87N00N0D100C2

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Port Type	NPT	Input Voltage	24.0
Body Material	Brass	Division	Fluid Control Division
Port Size	1-1/2	Media	General Purpose for Air
Function	Normally Closed (NC)	Coil Type	DIN Form A, Class F
Valve Type	2-Way	Seal Material	NBR
Orifice 2 Size	n/a	Number of Ports	2
Flow Coefficient 2	n/a	Coil Specifications Met	Class F
Minimum Fluid Temperature	0	Minimum Pressure Differential	5
Maximum Pressure Differential	125	Power Consumption	10
Maximum Fluid Temperature	185	Orifice 1 Size	1-1/4
Flow Coefficient 1	22.5	Actuation Type	Manual
Product Series	7000 Series	Coil Type	DIN Form A, Class F
Voltage (V)	24 VDC	Maximum Pressure Differential (psi)	125 psi (DC)
Flow Factor 1 (Cv)	22.5	Orifice 1 Size (inch)	1-1/4
Power (Watts)	10 Watt (DC)
