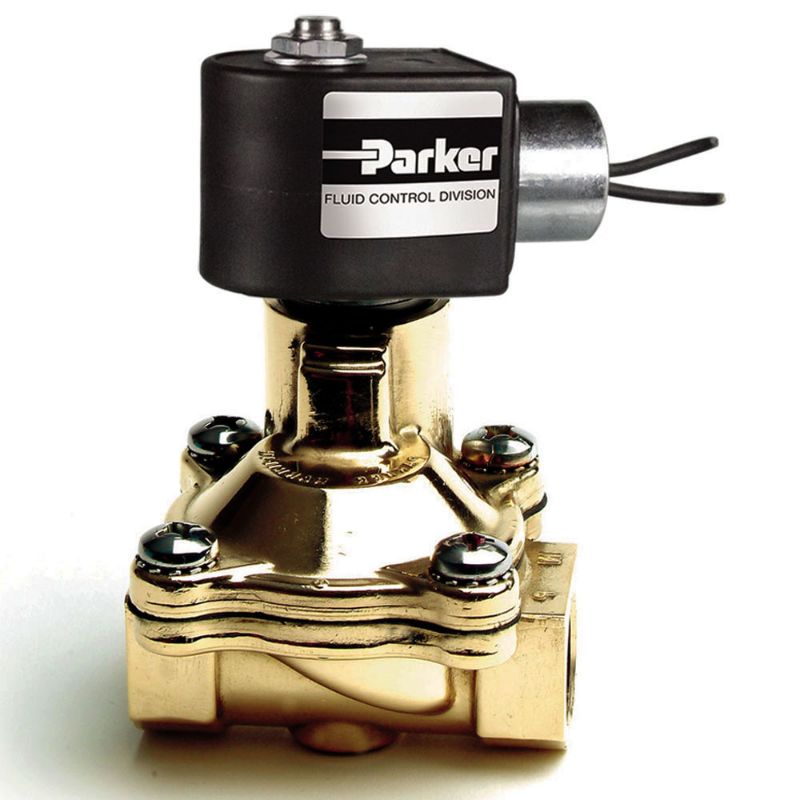

Parker 73218BN87N00N0C222Q3 - Parker 2-Way Normally Closed, 1-1/2" NPT General Purpose Solenoid Valves

Parker 2-Way Normally Closed, 1-1/2" NPT Solenoid Valves provide operating pressures up to 230 PSI and flow factors up to 29 CV's. They offer brass bodies, multi-mount options and Class F or H or NEMA 4X, 7 or 9 coils for all flow control applications.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 73218BN87N00N0C222Q3

Products specifications

Attribute name	Attribute value
Port Type	NPT	Body Material	Brass
Division	Fluid Control Division	Port Size	1-1/2
Media	General Purpose for Air	Function	Normally Closed (NC)
Valve Type	2-Way	Input Voltage	220/50 to 240/60
Seal Material	NBR	Orifice 2 Size	n/a
Number of Ports	2	Flow Coefficient 2	n/a
Coil Specifications Met	NEMA 4X	Minimum Fluid Temperature	0
Minimum Pressure Differential	5	Maximum Pressure Differential	125
Power Consumption	10	Maximum Fluid Temperature	185
Orifice 1 Size	1-1/4	Flow Coefficient 1	22.5
Actuation Type	Manual	Product Series	7000 Series
Coil Type	1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X	Voltage (V)	220/50-240/60
Maximum Pressure Differential (psi)	125 psi (AC)	Flow Factor 1 (Cv)	22.5
Orifice 1 Size (inch)	1-1/4	Power (Watts)	10 Watt (AC)
Coil Type	1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X
