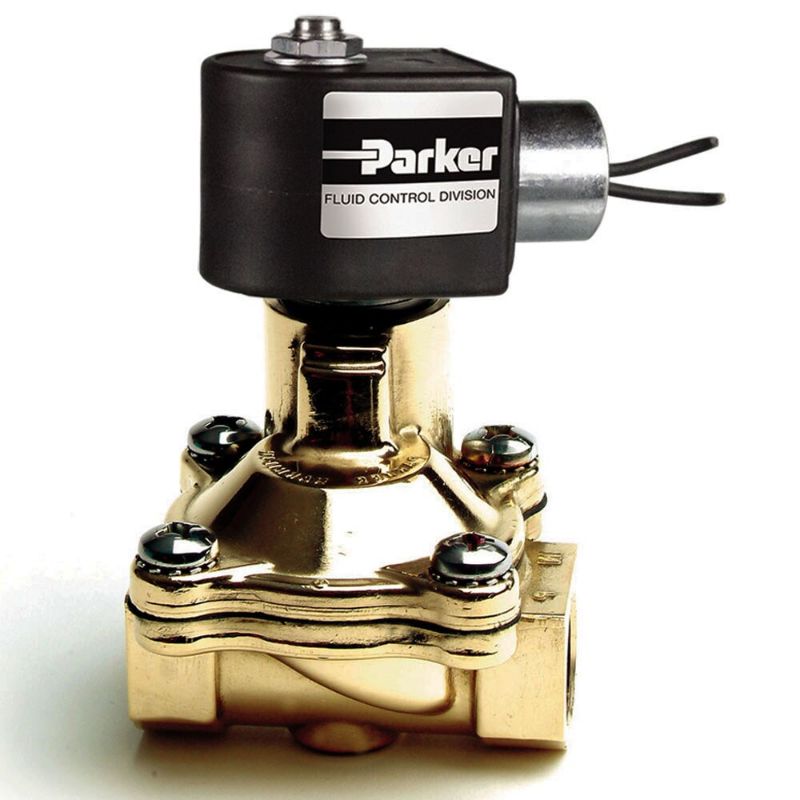

Parker 73212BN63N00N0H111P3 - Parker 2-Way Normally Closed, 1" NPT General Purpose Solenoid Valves

Parker 2-Way Normally Closed, 1" NPT Solenoid Valves provide operating pressures up to 300 PSI and flow factors up to 13.5 CV's. They offer brass bodies, multiple mounting positions and coil options for all general purpose flow control applications.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 73212BN63N00N0H111P3

$653.75/each

Products specifications

Attribute name	Attribute value
UOM	EA	Valve Type	2-Way
Division	Fluid Control Division	Flow Coefficient 2	n/a
Function	Normally Closed (NC)	Product Series	7000 Series
Orifice 2 Size	n/a	Minimum Fluid Temperature	0 °F
Port Size	1 inch	Minimum Pressure Differential	5 psi
Media	Liquids and Gases	Input Voltage	110/50-120/60
Coil Specifications Met	NEMA 9	Number of Ports	2
Coil Type	Hazardous Location Coil	Orifice 1 Size	1 inch
Flow Coefficient 1	13.5 Cv	Body Material	Brass
Power Consumption	10 W (AC)	Seal Material	NBR
Maximum Pressure Differential	300 psi (AC)	Actuation Type	Pilot
Maximum Fluid Temperature	185 °F	Port Type	NPT
Voltage (V)	110/50-120/60	Seal Material	NBR
Power (Watts)	10 Watt (AC)	Coil Type	Hazardous Location Coil
Flow Factor 1 (Cv)	13.5

Product resources

Literature and Reference Materials

73212/73222 (3/8 to 1\) Installation, Operation & Maintenance (PDF) $73212/73222 (3/8 to 1\) Installation, Operation & Maintenance$
