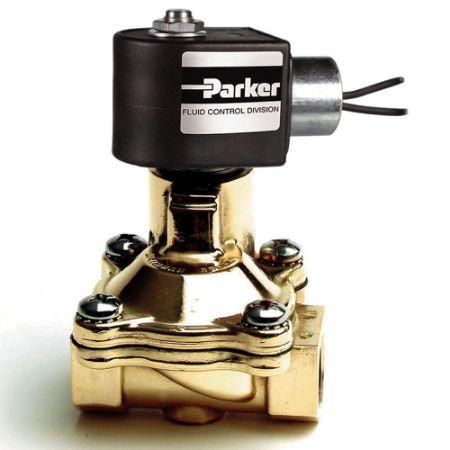

Parker 2-Way Normally Closed, 1" NPT General Purpose Solenoid Valves
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
AFP Industries stocks this Parker series for quote or purchase, with interchange support and southeast warehouse availability.
Parker's 2-Way Normally Closed 1" NPT Solenoid Valves are used in a wide variety of applications ideally suited for general purpose air, liquids and gases. These valves are available in brass construction. Coil options are available in 1/2" NPT Conduit and DIN Form A in Class F and H or NEMA 4X, 7 or 9 specification.
Markets:
• Commercial Equipment
• Food & Beverage
• Industrial Automation
• Oil & Gas
• Process Control
• Transportation
Features/ Benefits:
• High Quality Standards of Skinner® and Gold Ring™ Brand
• Modular Design
• Long Life
• Tight Shutoff
Applications:
• Instrumentation Equipment
• Analyzers and Diagnostic Equipment
• Medical and Dental Equipment
• Portable Welding Equipment
• Spraying Equipment
• Lubrication Equipment
• Beverage Dispensing & Vending machines
• Oil Burners
• Humidification and Misting Equipment
• Mobile Fuel Shut Off
• Textile and Dry Cleaning Equipment
• Commercial Dishwashers
• Commercial Laundry and Dryers
• Air Horns
• Pneumatic Fan Clutch
• Irrigation Equipment
| Action | Part No. | Availability | Partner Available | Price | UOM | Minimum Pressure Differential | Number of Ports | Media | Coil Specifications Met | Port Size | Division | Coil Type | Orifice 1 Size | Flow Coefficient 1 | Input Voltage | Body Material | Power Consumption | Seal Material | Maximum Fluid Temperature | Port Type | Maximum Pressure Differential | Actuation Type | Minimum Fluid Temperature | Function | Valve Type | Flow Coefficient 2 | Orifice 2 Size | Product Series | Seal Material | Voltage (V) | Power (Watts) | Coil Type | Flow Factor 1 (Cv) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7221GBN64E00N0C111P3 | Quote Required | $562.74/each | EA | 0 psi | 2 | General Purpose for Air | NEMA 4X | 1 inch | Fluid Control Division | 1/2" NPT Conduit, 18" Leads | 1 inch | 12.5 Cv | 110/50-120/60 | Brass | 10 W (AC) | EPDM | 210 °F | NPT | 230 psi (AC) | Direct Lift | 0 °F | Normally Closed (NC) | 2-Way | n/a | n/a | 7000 Series | EPDM | 110/50-120/60 | 10 Watt (AC) | 1/2" NPT Conduit, 18" Leads | 12.5 | ||
| 7221GBN64N00N0C322C2 | Quote Required | $588.23/each | EA | 0 psi | 2 | Liquids and Gases | NEMA 4X | 1 inch | Fluid Control Division | 1/2" NPT Conduit, 18" Leads | 1 inch | 11.7 Cv | 24.0 VDC | Brass | 22 W (DC) | NBR | 185 °F | NPT | 85 psi (DC) | Direct Lift | 0 °F | Normally Closed (NC) | 2-Way | n/a | n/a | 7000 Series | NBR | 24 VDC | 22 Watt (DC) | 1/2" NPT Conduit, 18" Leads | 11.7 | ||
| 73212BN63N00N0H111C2 | Quote Required | $653.48/each | EA | 5 psi | 2 | Liquids and Gases | NEMA 9 | 1 inch | Fluid Control Division | Hazardous Location Coil | 1 inch | 5 Cv | 24.0 VDC | Brass | 10 W (DC) | NBR | 185 °F | NPT | 300 psi (DC) | Pilot | 0 °F | Normally Closed (NC) | 2-Way | n/a | n/a | 7000 Series | NBR | 24 VDC | 10 Watt (DC) | Hazardous Location Coil | 5 | ||
| 73212BN63N00N0H111P3 | Quote Required | $653.75/each | EA | 5 psi | 2 | Liquids and Gases | NEMA 9 | 1 inch | Fluid Control Division | Hazardous Location Coil | 1 inch | 13.5 Cv | 110/50-120/60 | Brass | 10 W (AC) | NBR | 185 °F | NPT | 300 psi (AC) | Pilot | 0 °F | Normally Closed (NC) | 2-Way | n/a | n/a | 7000 Series | NBR | 110/50-120/60 | 10 Watt (AC) | Hazardous Location Coil | 13.5 | ||
| 73218BN64N00N0H111C2 | Quote Required | $588.68/each | EA | 5 psi | 2 | Liquids and Gases | NEMA 7 | 1 inch | Fluid Control Division | Hazardous Location Coil | 1 inch | 5.5 Cv | 24.0 VDC | Brass | 10 W (DC) | NBR | 185 °F | NPT | 125 psi (DC) | Pilot | 0 °F | Normally Closed (NC) | 2-Way | n/a | n/a | 7000 Series | NBR | 24 VDC | 10 Watt (DC) | Hazardous Location Coil | 5.5 | ||
| 7321GBN64N00N0C111C2 | Quote Required | $408.31/each | EA | 5 psi | 2 | Liquids and Gases | NEMA 4X | 1 inch | Fluid Control Division | 1/2" NPT Conduit, 18" Leads | 1 inch | 11.7 Cv | 24.0 VDC | Brass | 10 W (DC) | NBR | 185 °F | NPT | 230 psi (DC) | Pilot | 0 °F | Normally Closed (NC) | 2-Way | n/a | n/a | 7000 Series | NBR | 24 VDC | 10 Watt (DC) | 1/2" NPT Conduit, 18" Leads | 11.7 | ||
| 7321GBN64N00N0C111P3 | Quote Required | $408.58/each | EA | 5 psi | 2 | General Purpose for Air | NEMA 4X | 1 inch | Fluid Control Division | 1/2" NPT Conduit, 18" Leads | 1 inch | 12.5 Cv | 110/50-120/60 | Brass | 10 W (AC) | NBR | 185 °F | NPT | 230 psi (AC) | Pilot | 0 °F | Normally Closed (NC) | 2-Way | n/a | n/a | 7000 Series | NBR | 110/50-120/60 | 10 Watt (AC) | 1/2" NPT Conduit, 18" Leads | 12.5 |
