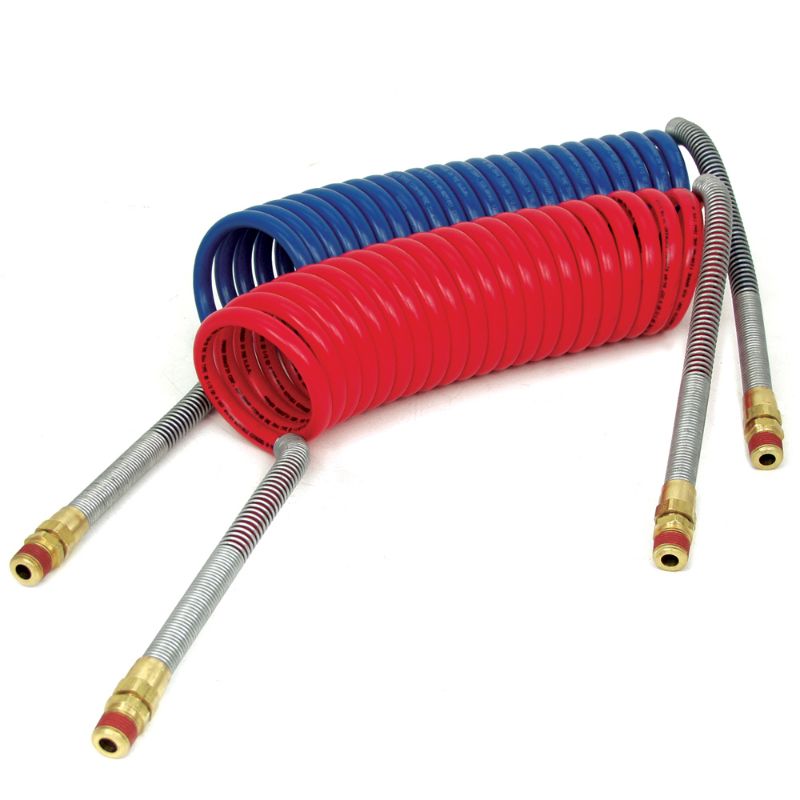

Parker 731522 - Truck Coils, BRAKCOIL®

BRAKCOIL® tractor trailer coiled air hoses connect the service line and the emergency line between the tractor and trailer.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 731522

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Connection 2 Size	1/2 inch Gladhand	Valve Tail Length	40 inch
Tube Outside Diameter	1/2 inch	Connection 1 Size	1/2 inch Valve
Division	Parflex Division	Number of Coils	21-1/2
Application	Tractor to Trailer	Product Style	BrakCoil® Kit
Minimum Operating Temperature	-70 °F	Working Length	15 ft
Tube Material	Polyamide (PA)	Maximum Operating Temperature	200 °F
Color	Blue	Valve Tail Length (inch)	40
Style	BrakCoil® Kit	Color	Red, Blue
Connection 1 Style	1/2" Valve
