Truck Coils, BRAKCOIL®
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

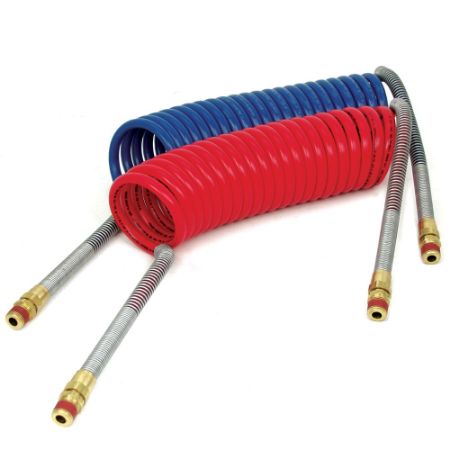

Parker Brakcoil® hoses are supplied as ready to install, pre-assembled kits and include spring guards and male pipe NTA brass fittings. A kit consists of both a red and blue tube assembly. Special pipe thread sealant is factory applied and there is no cutting or assembly necessary. Just attach the gladhands (sold separately or pre-assembled). They are available in kits or as separate lines.
Markets:
• Transportation
Features/Benefits:
• Maintenance-free performance designed for trouble-free service on your rig
• Ready to install, no cutting or assembly necessary
• Years of city delivery and line haul testing
• Heavy-duty plated spring guards are rust-resistant for added protection
• More coils offer you maximum working lengths
• No need for pogo sticks or spring hangers
• Color coding gives you mistake-free hookups – blue for service, red for emergency
Applications:
• Tractor-to-trailer air-brake connections
Read More...Markets:
• Transportation
Features/Benefits:
• Maintenance-free performance designed for trouble-free service on your rig
• Ready to install, no cutting or assembly necessary
• Years of city delivery and line haul testing
• Heavy-duty plated spring guards are rust-resistant for added protection
• More coils offer you maximum working lengths
• No need for pogo sticks or spring hangers
• Color coding gives you mistake-free hookups – blue for service, red for emergency
Applications:
• Tractor-to-trailer air-brake connections
| Action | Part No. | Availability | Partner Available | Price | UOM | UOM | Product Style | Tube Outside Diameter | Minimum Operating Temperature | Connection 2 Size | Valve Tail Length | Maximum Operating Temperature | Number of Coils | Application | Connection 1 Size | Division | Working Length | Tube Material | Color | Color | Valve Tail Length (inch) | Style | Connection 1 Style | Disclaimer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 731512-BLU | Quote Required | TBD | BrakCoil® Single Coil | 1/2 inch | -57 °C | 1/2 inch Gladhand | 12 inch | 200 °F | 21-1/2 | Tractor to Trailer | 1/2 inch Valve | Parflex Division | 15 ft | Polyamide (PA) | Blue | Blue | 12 | BrakCoil® Single Coil | 1/2" Valve | |||||
| 731512-Red | Quote Required | TBD | EA | EA | BrakCoil® Single Coil | 1/2 | -70 | 1/2 inch Gladhand | 12 | 200 | 21-1/2 | Tractor to Trailer | 1/2 inch Valve | Parflex Division | 15 | Polyamide (PA) | Red | Red | 12 | BrakCoil® Single Coil | 1/2" Valve | |||
| 731512-RED | Quote Required | TBD | EA | BrakCoil® Single Coil | 1/2 | -70 | 1/2 inch Gladhand | 12 | 200 | 21-1/2 | Tractor to Trailer | 1/2 inch Valve | Parflex Division | 15 | Polyamide (PA) | Red | Red | 12 | BrakCoil® Single Coil | 1/2" Valve | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. | |||
| 731513-BLU | Quote Required | TBD | BrakCoil® Single Coil | 1/2 inch | -70 °F | 1/2 inch Gladhand | 40 inch | 93 °C | 21-1/2 | Tractor to Trailer | 1/2 inch Valve | Parflex Division | 15 ft | Polyamide (PA) | Blue | Blue | 40 | BrakCoil® Single Coil | 1/2" Valve | |||||
| 731513-Red | Quote Required | TBD | BrakCoil® Single Coil | 1/2 | -70 | 1/2 inch Gladhand | 40 | 200 | 21-1/2 | Tractor to Trailer | 1/2 inch Valve | Parflex Division | 15 | Polyamide (PA) | Red | Red | 40 | BrakCoil® Single Coil | 1/2" Valve | |||||
| 731513-RED | Quote Required | TBD | BrakCoil® Single Coil | 1/2 | -70 | 1/2 inch Gladhand | 40 | 200 | 21-1/2 | Tractor to Trailer | 1/2 inch Valve | Parflex Division | 15 | Polyamide (PA) | Red | Red | 40 | BrakCoil® Single Coil | 1/2" Valve | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. | ||||
| 731516 | Quote Required | TBD | BrakCoil® Kit | 1/2 inch | -57 °C | 1/2 inch Gladhand | 12 inch | 200 °F | 21-1/2 | Tractor to Trailer | 1/2 inch Valve | Parflex Division | 15 ft | Polyamide (PA) | Blue | Red, Blue | 12 | BrakCoil® Kit | 1/2" Valve | |||||
| 731522 | Quote Required | TBD | BrakCoil® Kit | 1/2 inch | -70 °F | 1/2 inch Gladhand | 40 inch | 200 °F | 21-1/2 | Tractor to Trailer | 1/2 inch Valve | Parflex Division | 15 ft | Polyamide (PA) | Blue | Red, Blue | 40 | BrakCoil® Kit | 1/2" Valve | |||||
| 731611-Red | Quote Required | TBD | BrakCoil® Single Coil | 1/2 | -70 | 1/2 inch Gladhand | 12 | 200 | 21-1/2 | Tractor to Trailer | 3/8 inch Valve | Parflex Division | 15 | Polyamide (PA) | Red | Red | 12 | BrakCoil® Single Coil | 3/8" Valve | |||||
| 731611-RED | Quote Required | TBD | BrakCoil® Single Coil | 1/2 | -70 | 1/2 inch Gladhand | 12 | 200 | 21-1/2 | Tractor to Trailer | 3/8 inch Valve | Parflex Division | 15 | Polyamide (PA) | Red | Red | 12 | BrakCoil® Single Coil | 3/8" Valve | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. | ||||
| 731612-BLU | Quote Required | TBD | BrakCoil® Single Coil | 1/2 | -70 | 1/2 inch Gladhand | 40 | 200 | 21-1/2 | Tractor to Trailer | 3/8 inch Valve | Parflex Division | 15 | Polyamide (PA) | Blue | Blue | 40 | BrakCoil® Single Coil | 3/8" Valve | |||||
| 731612-Red | Quote Required | TBD | BrakCoil® Single Coil | 1/2 | -70 | 1/2 inch Gladhand | 40 | 200 | 21-1/2 | Tractor to Trailer | 3/8 inch Valve | Parflex Division | 15 | Polyamide (PA) | Red | Red | 40 | BrakCoil® Single Coil | 3/8" Valve | |||||
| 731612-RED | Quote Required | TBD | BrakCoil® Single Coil | 1/2 | -70 | 1/2 inch Gladhand | 40 | 200 | 21-1/2 | Tractor to Trailer | 3/8 inch Valve | Parflex Division | 15 | Polyamide (PA) | Red | Red | 40 | BrakCoil® Single Coil | 3/8" Valve | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. | ||||
| 741526 | Quote Required | TBD | BrakCoil® Kit | 1/2 | -70 | 1/2 inch Gladhand | 40 | 200 | 21-1/2 | Tractor to Trailer | 3/8 inch Valve | Parflex Division | 15 | Polyamide (PA) | Red | Red, Blue | 40 | BrakCoil® Kit | 3/8" Valve | |||||
| 741590-BLU | Quote Required | TBD | BrakCoil® Single Coil | 1/2 | -70 | 1/2 inch Gladhand | 6 | 200 | 18-1/2 | Tractor to Trailer | 1/2 inch Valve | Parflex Division | 12 | Polyamide (PA) | Blue | Blue | 6 | BrakCoil® Single Coil | 1/2" Valve | |||||
| 741590-Red | Quote Required | TBD | BrakCoil® Single Coil | 1/2 | -70 | 1/2 inch Gladhand | 6 | 200 | 18-1/2 | Tractor to Trailer | 1/2 inch Valve | Parflex Division | 12 | Polyamide (PA) | Red | Red | 6 | BrakCoil® Single Coil | 1/2" Valve | |||||
| 741590-RED | Quote Required | TBD | BrakCoil® Single Coil | 1/2 | -70 | 1/2 inch Gladhand | 6 | 200 | 18-1/2 | Tractor to Trailer | 1/2 inch Valve | Parflex Division | 12 | Polyamide (PA) | Red | Red | 6 | BrakCoil® Single Coil | 1/2" Valve | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. | ||||
| 751641 | Quote Required | TBD | BrakCoil® Kit | 1/2 inch | -57 °C | 1/2 inch Gladhand | 6 inch | 93 °C | 18-1/2 | Tractor to Trailer | 1/2 inch Valve | Parflex Division | 12 ft | Polyamide (PA) | Red | Red, Blue | 6 | BrakCoil® Kit | 1/2" Valve |
