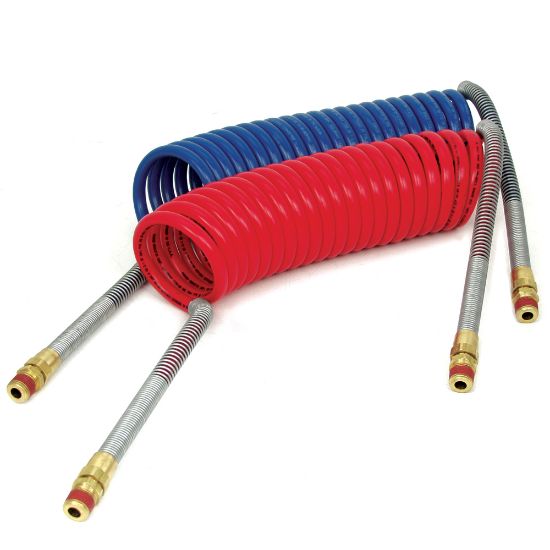

Parker 731516 - Truck Coils, BRAKCOIL®

BRAKCOIL® tractor trailer coiled air hoses connect the service line and the emergency line between the tractor and trailer.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 731516

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Color	Blue	Working Length	15 ft
Maximum Operating Temperature	200 °F	Tube Material	Polyamide (PA)
Tube Outside Diameter	1/2 inch	Minimum Operating Temperature	-57 °C
Connection 2 Size	1/2 inch Gladhand	Application	Tractor to Trailer
Valve Tail Length	12 inch	Connection 1 Size	1/2 inch Valve
Product Style	BrakCoil® Kit	Division	Parflex Division
Number of Coils	21-1/2	Connection 1 Style	1/2" Valve
Style	BrakCoil® Kit	Color	Red, Blue
Valve Tail Length (inch)	12
