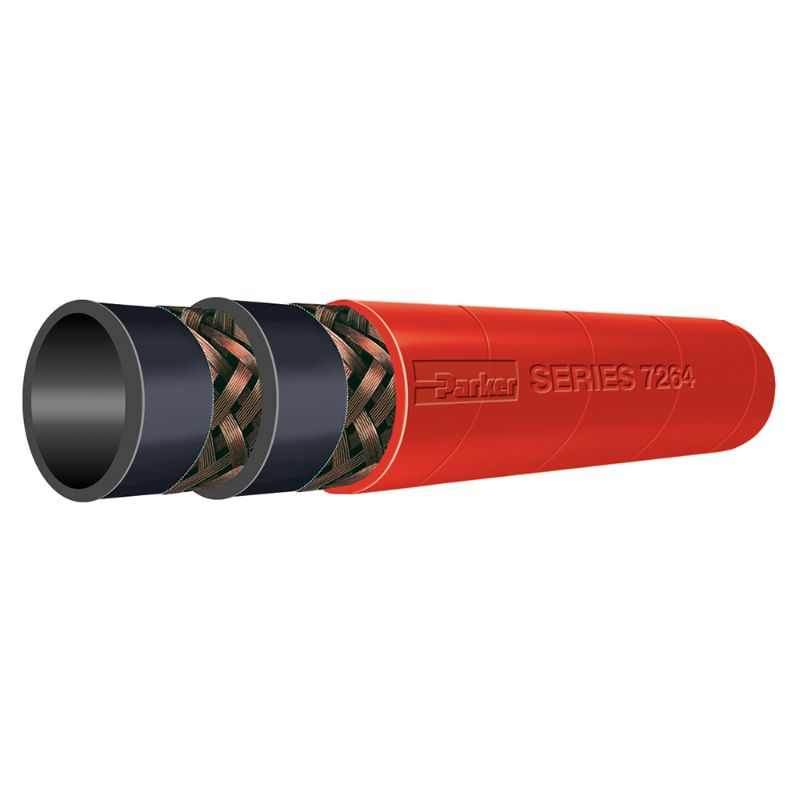

Parker 7264-752 - STEAM-LANCE® 250 STEAM HOSE

Steam-Lance® 250 Steam Hose is designed for steam applications to 406°F for saturated steam at 261 psi and 450° for superheated steam at 250 psi

AFP Availability:	Quote Required
Partner Available:	1025 In Stock

Brand Parker

Part No. 7264-752

$11.69/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Cover Material	Ethylene Propylene Diene Monomer (EPDM)
Minimum Operating Temperature	-40 °C	Application	Processing
Nominal Hose Inside Diameter	20 mm	Cover Structure	Perforated
Weight	0.98 kg/m	Maximum Operating Pressure	250 bar (Superheated Steam)
Specifications Met	ISO 6134, Type 2	Minimum Bend Radius	241 mm
Hose Reinforcement Material	Multiple Braids of Wire	Division	Hose Products Division
Outside Diameter	34.1 mm	Inside Diameter	3/4 inch
Hose Inner Tube Material	Black	Media	Steam
Maximum Operating Temperature	450 °F (Superheated Steam)	Size	-12
Color	Red	Hose I.D. (inch)	3/4
Packaging	Carton
