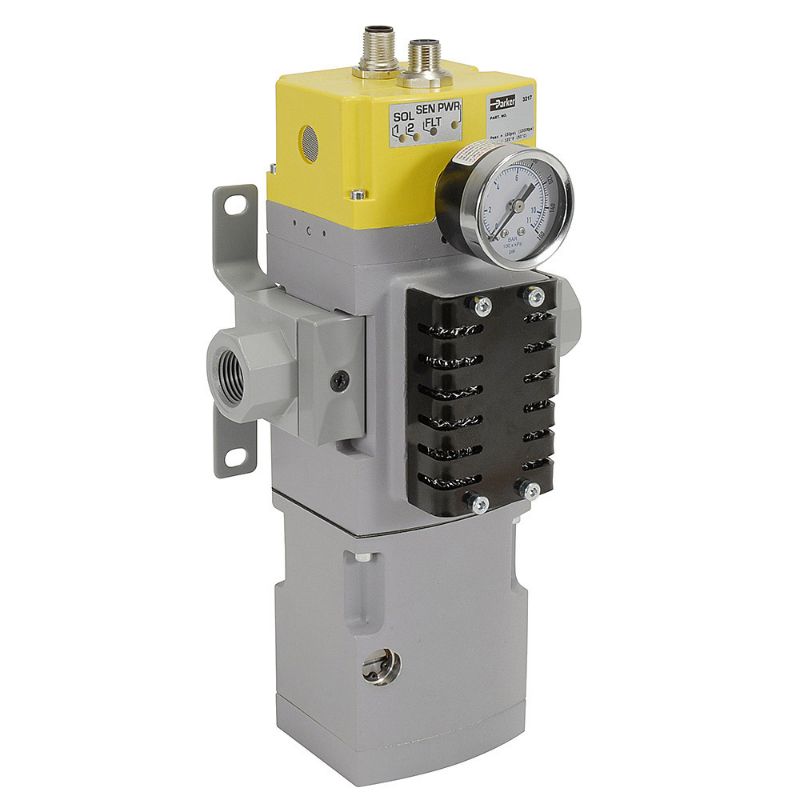

Parker P33DB96CCED - Global FRL Valves (Safety Exhaust)

The P33 Safety Exhaust valve is designed to safely remove trapped air from machinery bringing machinery to a safe state. This product is externally monitored and designed for two channel safety architecture up to Category 4, Performance level e.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. P33DB96CCED

$988.44

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Height	17.87
Minimum Operating Pressure	10	Product Type	Safety Exhaust Valve
Seal Material	Nitrile Butadiene Rubber (NBR)	Brand	Parker
Port Size	3/4	Length	10.93
Port Type	NPT	Product Style	Electro-Pneumatic (Solenoid Actuated)
Input Voltage	24	Weight	1.9
Body Material	Cast Aluminum	Electrical Connection	M12 (x2)
Mounting Type	Inline / Stand-Alone or Modular Mount (on P32/P33 FRL)	Industry	General Industry
Specifications Met	Category 4, Performance Level e per EN ISO 13849-1 (pending)	Operating Temperature	4 to 50
Application	Pneumatic Safety Systems (up to Category 4 / performance level ‘e’)	Technology	Pneumatics
Function	3/2 Normally-Closed	Width	8
Flow Rate	≤ 265	Maximum Operating Pressure	150
Division	Pneumatic Division	Product Style	[P33D] - Without Soft Start
Port Size	[6] - 3/4 inch	Solenoid Connection	[C] - M12 pins: 3 & 4 for bipolar outputs
Port Type	[B9] - NPTF	Sensor Connection	[C] - M12 pins: 5&2, 1&4, common 3
Options	Black Grill	Pressure Gauge	[ED] - Digital Gauge
