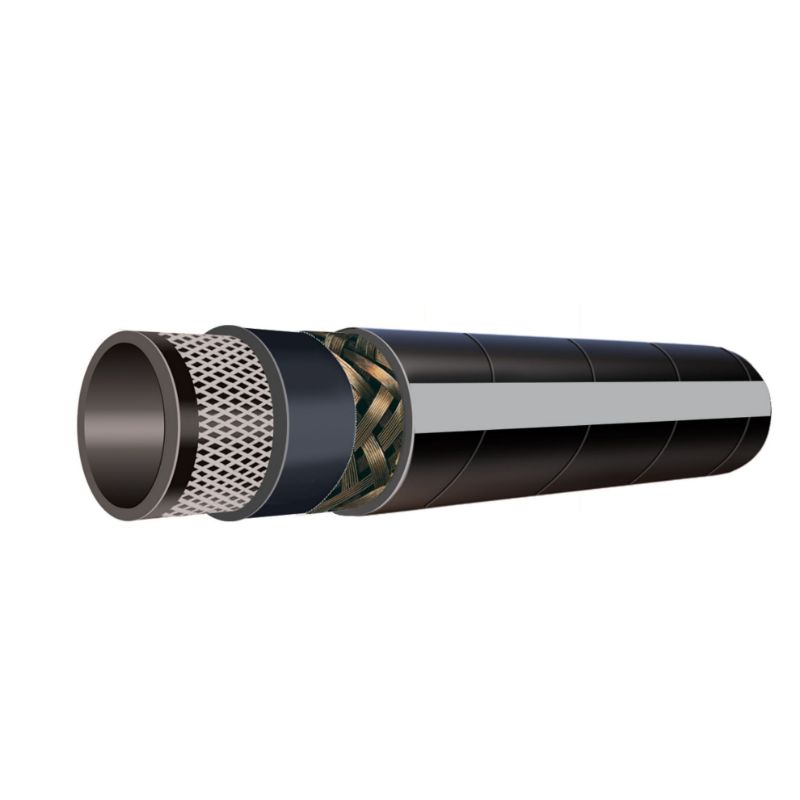

Parker 7261-1001 - Anhydrous Ammonia Hose, Series 7261

Anhydrous Ammonia Hose is designed for transfer of anhydrous ammonia in applications to 180°F and 350 psi, Series 7261

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7261-1001

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Minimum Operating Temperature	-40 °C
Application	Chemical Transfer	Cover Material	Ethylene Propylene Diene Monomer (EPDM)
Package Type	Coil	Length per Package	50 ft
Cover Color	Black	Inside Diameter	1 inch
Hose Inner Tube Material	Black	Media	Mild Chemicals (Anhydrous Ammonia)
Maximum Operating Temperature	82 °C	Outside Diameter	1.500 inch
Maximum Operating Pressure	24.1 bar	Weight	0.65 lb
Cover Structure	Wrapped	Minimum Bend Radius	12 inch
Specifications Met	ARPM IP-14	Hose Reinforcement Material	1 Braid of Textile and 1 Braid of Stainless Steel Wire
Hose I.D. (inch)	1	Maximum Working Pressure (psi)	350
