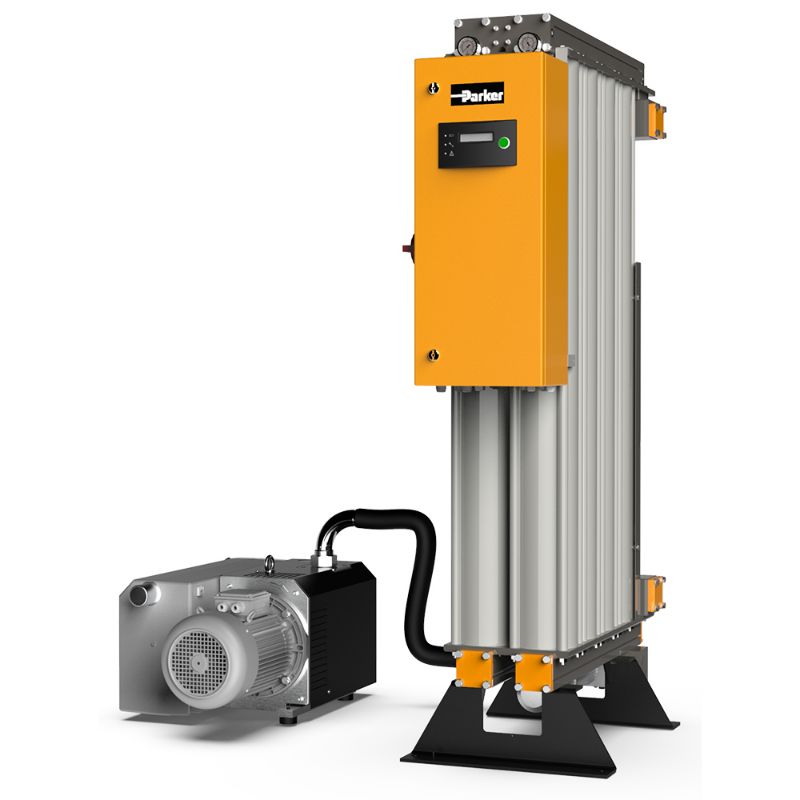

Parker MXLE105 - MXLE Large Flow Low Energy Heatless Compressed Air Dryer

Large flow low energy modular compressed air dryers providing pressure dew points of -70°C and -40°C (-20°C option) with flow rates up to 2040 m³/hr @ 7 barg, even greater flow rates can be achieved by multi-banking the dryers.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. MXLE105

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Depth	21.7 inch	Brand	Parker
Ambient Temperature	55.0 °C Maximum	Specifications Met	PED 2014/68/EU Fluid Group II
Product Series	MXLE	Division	Gas Separation and Filtration Division EMEA
Weight	573 kg	Operating Pressure	58 to 190 psig
Industry	Industrial Manufacturing Equipment<br/>Food & Beverage<br/>Automotive<br/> Electronics<br/> Pharmaceuticals<br/> Medical & Dental	Width	51.2 inch
Height	1892.0 mm	Noise Level	< 75 dBA
Division	Gas Separation and Filtration Division EMEA	Application	Compressed Air Applications
Ingress Protection Rating	IP55 Indoor Use Only	Electrical Requirements	Standard: 400V +/-10% 3PH 50Hz<br/>Option: 460V +/-10% 3PH 60Hz
Technology	Filtration	Connection Type	BSPP
Operating Temperature	41 to 122 °F	Product Type	Compressed Air Dryer
Product Style	Heatless Low Energy - Vacuum Assisted	Port Size	2½ inch
ISO Grade	Class 2.2.2 or Class 2.3.2	Pressure Dew Point	-40°C (-40°F) or -20°C (-4°F) Option
Flow Rate	1275 m³/h @7 barg (240 cfm @102 psig)
