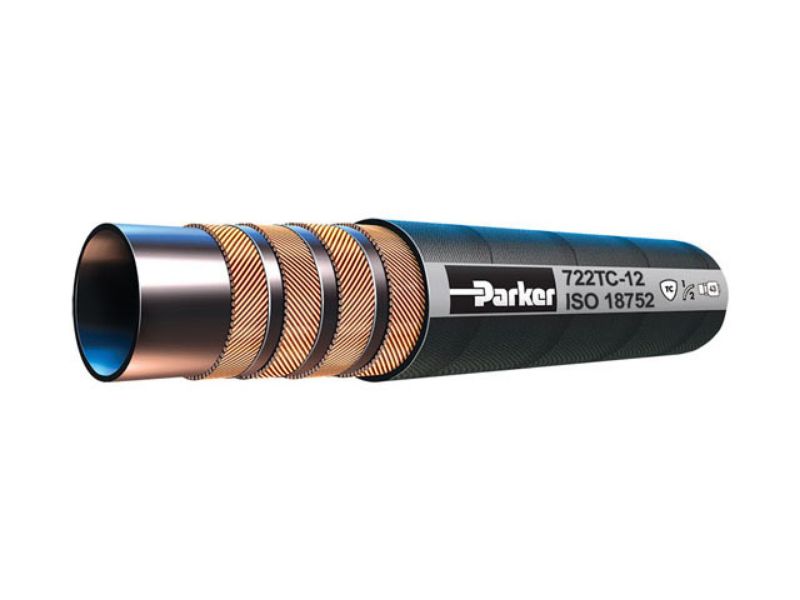

Parker 722TC-12-RL - 722TC Series

Name: Parker 722TC-12-RL - 722TC Series
SKU: 722TC-12-RL
Price: 22.72 USD
Availability: InStock

High Tough Cover Constant Pressure 4000 PSI Hydraulic Hose

AFP Availability:

531 In Stock

Sumter, SC	341
Jacksonville, FL	150
Mooresville, NC	37
Norfolk, VA	2
Fayetteville, NC	1

Partner Available:

3461 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 722TC-12-RL

$22.72/foot

Qty:

Products specifications

Attribute name	Attribute value
UOM	FT	Working Pressure	4,000 psi (28 MPa)
Mating Fitting Series	43	Inner Diameter	0.75 Inch
Material	Rubber	Parker Group	Fluid Connector
Inch/Metric	Inch	Parker Division	Hose Products
Inner Diameter	0.75 Inch	Inner Diameter Inch/mm	Inch
Material	Rubber	Application	Hydraulic
Working Pressure Range	4000 to 4999 PSI (276 to 345 bar)	Hose Category	Hydraulic Industry Standard
Trade Name	GlobalCore	Mating End Fitting Series	43
Specification	ISO 18752	Minimum Bend Radius	4 3/4 Inch
Operating Temperature	-40°F to +257°F (-40°C to +125°C)	ISO 18752 Performance	CC
Hose Pressure Range	High	Distinct Properties	Tough Cover Constant Pressure 4000 PSI
Working Pressure	4,000 psi (28 MPa)	Series	722TC
