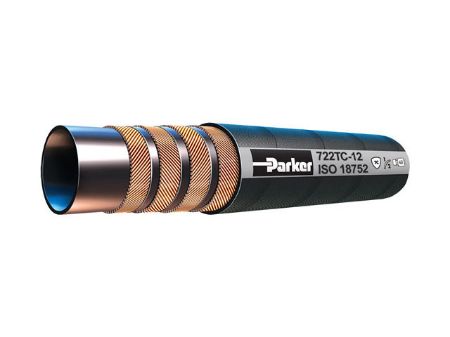

722TC Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
AFP Industries stocks this Parker series for quote or purchase, with interchange support and southeast warehouse availability.
Parker’s GlobalCore 722TC hose provides 4,000 psi (28 MPa) constant working pressure in all sizes. 4-spiral construction for longer life in high-impulse, heavy-duty cycle applications. 450 times the abrasion resistance compared to standard rubber cover hose. ½ bend radius of 100R12 hose. Exceeds ISO 18752 performance specification.
Read More...| Action | Part No. | Availability | Partner Available | Price | UOM | Inner Diameter | Material | Working Pressure | Mating Fitting Series | Parker Group | Inch/Metric | Parker Division | Inner Diameter | Inner Diameter Inch/mm | Material | Application | Working Pressure Range | Hose Category | Trade Name | Mating End Fitting Series | Specification | Minimum Bend Radius | Operating Temperature | ISO 18752 Performance | Hose Pressure Range | Distinct Properties | Working Pressure | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 722TC-10-RL | 144 In Stock | 2003 In Stock | $21.86/foot | FT | 0.625 Inch | Rubber | 4,000 psi (28 MPa) | 43 | Fluid Connector | Inch | Hose Products | 0.625 Inch | Inch | Rubber | Hydraulic | 4000 to 4999 PSI (276 to 345 bar) | Hydraulic Industry Standard | GlobalCore | 43 | ISO 18752 | 4 Inch | -40°F to +257°F (-40°C to +125°C) | CC | High | Tough Cover Constant Pressure 4000 PSI | 4,000 psi (28 MPa) | 722TC | |
| 722TC-12-RL | 531 In Stock | 3461 In Stock | $22.72/foot | FT | 0.75 Inch | Rubber | 4,000 psi (28 MPa) | 43 | Fluid Connector | Inch | Hose Products | 0.75 Inch | Inch | Rubber | Hydraulic | 4000 to 4999 PSI (276 to 345 bar) | Hydraulic Industry Standard | GlobalCore | 43 | ISO 18752 | 4 3/4 Inch | -40°F to +257°F (-40°C to +125°C) | CC | High | Tough Cover Constant Pressure 4000 PSI | 4,000 psi (28 MPa) | 722TC | |
| 722TC-16-RL | 53 In Stock | 4571 In Stock | $27.49/foot | FT | 1 Inch | Rubber | 4,000 psi (28 MPa) | 43 | Fluid Connector | Inch | Hose Products | 1 Inch | Inch | Rubber | Hydraulic | 4000 to 4999 PSI (276 to 345 bar) | Hydraulic Industry Standard | GlobalCore | 43 | ISO 18752 | 6 Inch | -40°F to +257°F (-40°C to +125°C) | CC | High | Tough Cover Constant Pressure 4000 PSI | 4,000 psi (28 MPa) | 722TC | |
| 722TC-6-RL | 558 In Stock | 1352 In Stock | $16.33/foot | FT | 0.375 Inch | Rubber | 4,000 psi (28 MPa) | 43 | Fluid Connector | Inch | Hose Products | 0.375 Inch | Inch | Rubber | Hydraulic | 4000 to 4999 PSI (276 to 345 bar) | Hydraulic Industry Standard | GlobalCore | 43 | ISO 18752 | 2 1/2 Inch | -40°F to +257°F (-40°C to +125°C) | CC | High | Tough Cover Constant Pressure 4000 PSI | 4,000 psi (28 MPa) | 722TC | |
| 722TC-8-RL | 170 In Stock | 2191 In Stock | $20.90/foot | FT | 0.5 Inch | Rubber | 4,000 psi (28 MPa) | 43 | Fluid Connector | Inch | Hose Products | 0.5 Inch | Inch | Rubber | Hydraulic | 4000 to 4999 PSI (276 to 345 bar) | Hydraulic Industry Standard | GlobalCore | 43 | ISO 18752 | 3 1/2 Inch | -40°F to +257°F (-40°C to +125°C) | CC | High | Tough Cover Constant Pressure 4000 PSI | 4,000 psi (28 MPa) | 722TC |
