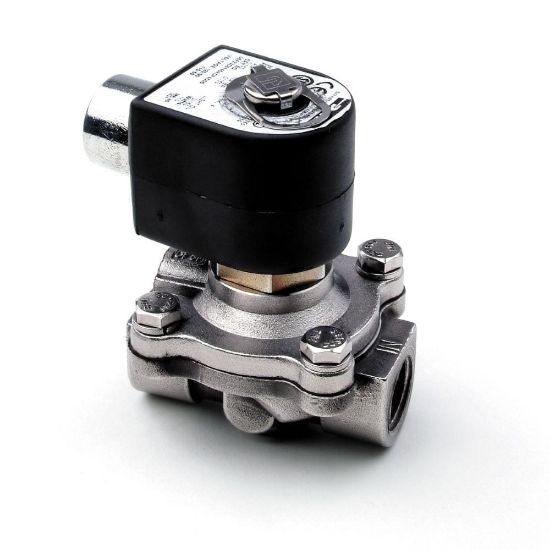

Parker 72228RN4UV00N0H322P3 - Parker 2-Way Normally Open, 1/2" NPT General Purpose Solenoid Valves

Parker 2-Way Normally Open, 1/2" NPT Solenoid Valves provide operating pressures up to 150 PSI and a flow factor of 4 CV's. They offer multiple body materials, mounting positions and coil options for all general purpose flow control applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 72228RN4UV00N0H322P3

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Port Size	1/2	Port Type	NPT
Division	Fluid Control Division	Media	General Purpose for Air
Function	Normally Open (NO)	Valve Type	2-Way
Input Voltage	110/50-120/60	Orifice 2 Size	n/a
Number of Ports	2	Flow Coefficient 2	n/a
Minimum Fluid Temperature	0	Maximum Pressure Differential	125 psi (AC)
Minimum Pressure Differential	0	Body Material	Stainless Steel 316
Seal Material	FKM	Actuation Type	Direct Lift
Flow Coefficient 1	4	Maximum Fluid Temperature	185
Product Series	7000 Series	Power Consumption	22 W (AC)
Coil Type	1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9	Orifice 1 Size	7/16
Coil Specifications Met	NEMA 9	Voltage (V)	110/50-120/60
Maximum Pressure Differential (psi)	125 psi (AC)	Seal Material	FKM
Coil Type	1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9	Orifice 1 Size (inch)	7/16
Power (Watts)	22 Watt (AC)	Body Material	316 Stainless
