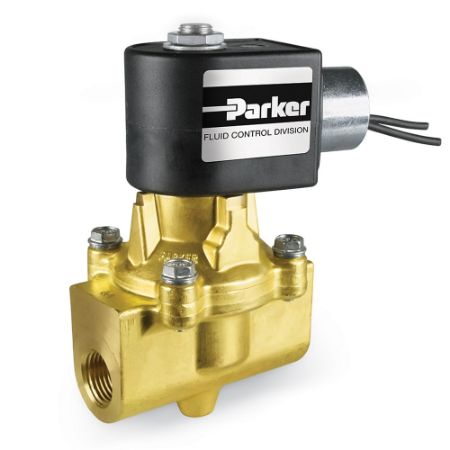

Parker 2-Way Normally Open, 1/2" NPT General Purpose Solenoid Valves
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
AFP Industries stocks this Parker series for quote or purchase, with interchange support and southeast warehouse availability.
Parker's 2-Way Normally Open 1/2" NPT Solenoid Valves are used in a wide variety of applications ideally suited for general purpose air, liquids, gases and steam. These valves are available in brass and stainless steel construction. Coil options are available in 1/2" NPT Conduit and DIN Form A in Class F and H or NEMA 4X, 7 or 9 specification.
Markets:
• Commercial Equipment
• Food & Beverage
• Industrial Automation
• Oil & Gas
• Process Control
• Transportation
Features/ Benefits:
• High Quality Standards of Skinner® and Gold Ring™ Brand
• Modular Design
• Long Life
• Tight Shutoff
Applications:
• Instrumentation Equipment
• Analyzers and Diagnostic Equipment
• Medical and Dental Equipment
• Portable Welding Equipment
• Spraying Equipment
• Lubrication Equipment
• Beverage Dispensing & Vending machines
• Oil Burners
• Humidification and Misting Equipment
• Mobile Fuel Shut Off
• Textile and Dry Cleaning Equipment
• Commercial Dishwashers
• Commercial Laundry and Dryers
• Air Horns
• Pneumatic Fan Clutch
• Irrigation Equipment
| Action | Part No. | Availability | Partner Available | Price | UOM | Minimum Fluid Temperature | Orifice 2 Size | Function | Product Series | Flow Coefficient 2 | Seal Material | Power Consumption | Division | Coil Type | Valve Type | Body Material | Input Voltage | Media | Coil Specifications Met | Port Size | Minimum Pressure Differential | Number of Ports | Actuation Type | Maximum Fluid Temperature | Maximum Pressure Differential | Port Type | Flow Coefficient 1 | Orifice 1 Size | Body Material | Voltage (V) | Seal Material | Maximum Pressure Differential (psi) | Coil Type | Power (Watts) | Orifice 1 Size (inch) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 72228BN4UV00N0H322C2 | Quote Required | TBD | EA | 0 | n/a | Normally Open (NO) | 7000 Series | n/a | FKM | 22 W (DC) | Fluid Control Division | 1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9 | 2-Way | Brass | 24.0 | General Purpose for Air | NEMA 9 | 1/2 | 0 | 2 | Direct Lift | 185 | 125 psi (DC) | NPT | 4 | 7/16 | BRASS | 24 VDC | FKM | 125 psi (DC) | 1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9 | 22 Watt (DC) | 7/16 |
