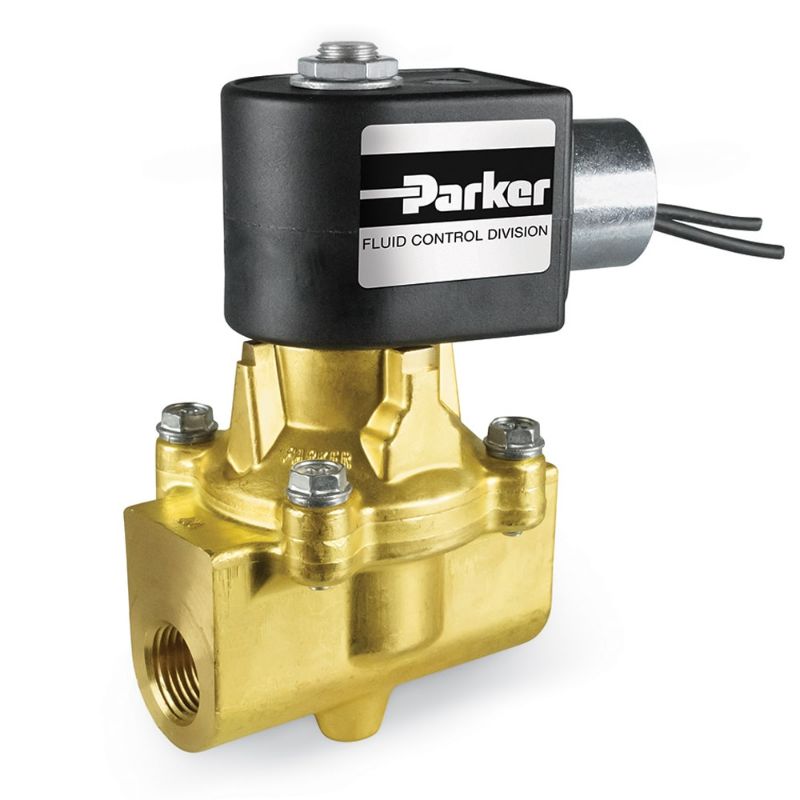

Parker 72228BN4UV00N0H322C2 - Parker 2-Way Normally Open, 1/2" NPT General Purpose Solenoid Valves

Parker 2-Way Normally Open, 1/2" NPT Solenoid Valves provide operating pressures up to 150 PSI and a flow factor of 4 CV's. They offer multiple body materials, mounting positions and coil options for all general purpose flow control applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 72228BN4UV00N0H322C2

$0.01

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Port Size	1/2
Port Type	NPT	Input Voltage	24.0
Body Material	Brass	Division	Fluid Control Division
Media	General Purpose for Air	Function	Normally Open (NO)
Valve Type	2-Way	Orifice 2 Size	n/a
Number of Ports	2	Flow Coefficient 2	n/a
Minimum Fluid Temperature	0	Minimum Pressure Differential	0
Seal Material	FKM	Actuation Type	Direct Lift
Maximum Pressure Differential	125 psi (DC)	Flow Coefficient 1	4
Maximum Fluid Temperature	185	Product Series	7000 Series
Power Consumption	22 W (DC)	Coil Type	1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9
Orifice 1 Size	7/16	Coil Specifications Met	NEMA 9
Body Material	BRASS	Voltage (V)	24 VDC
Seal Material	FKM	Maximum Pressure Differential (psi)	125 psi (DC)
Coil Type	1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9	Power (Watts)	22 Watt (DC)
Orifice 1 Size (inch)	7/16
