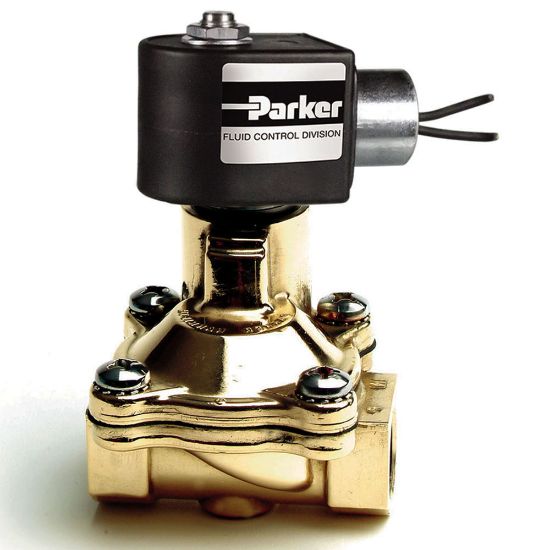

Parker 7221GBN64E00N0H111P3 - Parker 2-Way Normally Closed, 1" NPT General Purpose Solenoid Valves

Parker 2-Way Normally Closed, 1" NPT Solenoid Valves provide operating pressures up to 300 PSI and flow factors up to 13.5 CV's. They offer brass bodies, multiple mounting positions and coil options for all general purpose flow control applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7221GBN64E00N0H111P3

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Port Size	1	Port Type	NPT
Body Material	Brass	Division	Fluid Control Division
Media	General Purpose for Air	Function	Normally Closed (NC)
Valve Type	2-Way	Input Voltage	110/50-120/60
Seal Material	EPDM	Orifice 2 Size	n/a
Number of Ports	2	Flow Coefficient 2	n/a
Minimum Fluid Temperature	0	Minimum Pressure Differential	0
Actuation Type	Direct Lift	Orifice 1 Size	1
Power Consumption	10 W (AC)	Product Series	7000 Series
Coil Specifications Met	NEMA 9	Coil Type	Hazardous Location Coil
Flow Coefficient 1	2.5	Maximum Fluid Temperature	210
Maximum Pressure Differential	230 psi (AC)	Seal Material	EPDM
Voltage (V)	110/50-120/60	Power (Watts)	10 Watt (AC)
Coil Type	Hazardous Location Coil	Flow Factor 1 (Cv)	2.5

Product resources

Literature and Reference Materials

Tube Seal (PDF)
