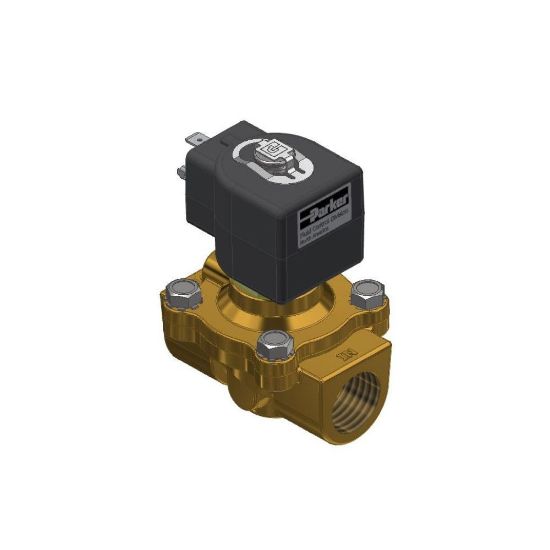

Parker 7221GBN64E00N0D300C1 - Parker 2-Way Normally Closed, 1" NPT General Purpose Solenoid Valves

Parker 2-Way Normally Closed, 1" NPT Solenoid Valves provide operating pressures up to 300 PSI and flow factors up to 13.5 CV's. They offer brass bodies, multiple mounting positions and coil options for all general purpose flow control applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7221GBN64E00N0D300C1

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Port Size	1	Port Type	NPT
Body Material	Brass	Division	Fluid Control Division
Media	General Purpose for Air	Function	Normally Closed (NC)
Valve Type	2-Way	Input Voltage	12.0
Seal Material	EPDM	Orifice 2 Size	n/a
Number of Ports	2	Flow Coefficient 2	n/a
Coil Specifications Met	NEMA 4X	Minimum Fluid Temperature	0
Minimum Pressure Differential	0	Actuation Type	Direct Lift
Orifice 1 Size	1	Coil Type	DIN Form A
Product Series	7000 Series	Power Consumption	22 W (DC)
Flow Coefficient 1	11.7	Maximum Fluid Temperature	210
Maximum Pressure Differential	85 psi (DC)	Seal Material	EPDM
Voltage (V)	12 VDC	Coil Type	DIN Form A
Power (Watts)	22 Watt (DC)	Flow Factor 1 (Cv)	11.7

Product resources

Literature and Reference Materials

Tube Seal (PDF)
