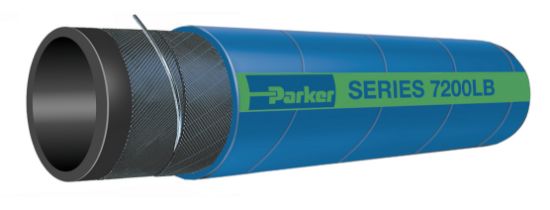

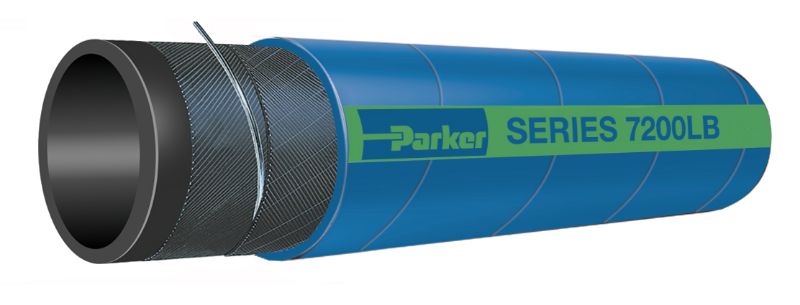

Parker 7200LB-4000 - Hydrocarbon High Temperature Oil Resistant Large Bore Drain Hose, Series 7200LB

Note: This product is no longer available – please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7200LB-4000

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Specifications Met	N/A
Package Type	Coil	Length per Package	100 ft
Cover Color	Blue	Minimum Bend Radius	n/a
Cover Material	Chloroprene Rubber (CR)	Hose Inner Tube Material	Nitrile
Maximum Operating Pressure	2.1 MPa	Size	-64
Inside Diameter	101.6 mm	Hose Reinforcement Material	4 Plies of Textile with Static Wire
Cover Structure	Wrapped	Minimum Operating Temperature	-29 °C
Media	Fuels (Hot Petrochemical Residue)	Weight	4.26 kg/m
Application	Drainage Lines	Outside Diameter	4.8 inch
Maximum Operating Temperature	149 °C Continuous	Nominal Hose Inside Diameter	100 mm
Vacuum Pressure Rating	n/a	Hose I.D. (inch)	4

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
