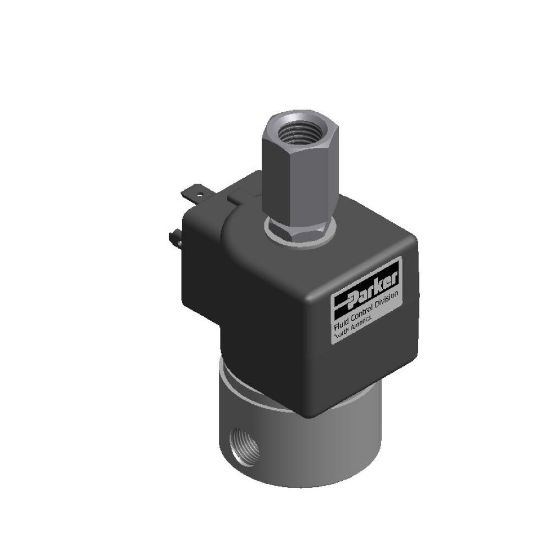

Parker 71315SN2EN00N0D200C1 - Parker 3-Way Normally Closed, 1/4" NPT General Purpose Solenoid Valves

Parker 3-Way Normally Closed, 1/4" NPT Solenoid Valves provide operating pressures up to 250 psi and flow factors up to 0.67 CV's. They come in stainless with multiple mounting positions and coil options for all general purpose flow control applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 71315SN2EN00N0D200C1

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Port Type	NPT	Port Size	1/4
Division	Fluid Control Division	Media	General Purpose for Air
Function	Normally Closed (NC)	Valve Type	3-Way
Body Material	Stainless Steel	Input Voltage	12.0
Seal Material	NBR	Actuation Type	Direct Acting
Orifice 2 Size	n/a	Number of Ports	3
Flow Coefficient 2	n/a	Minimum Fluid Temperature	0
Minimum Pressure Differential	0	Additional Options	No Option
Exhaust Orifice Size	1/16	Maximum Fluid Temperature	185
Coil Specifications Met	Class H	Main Orifice Size	3/64
Product Series	7000 Series	Power Consumption	10 W (DC)
Coil Type	DIN Form A, Class H	Main Flow Coefficient	0.062
Exhaust Flow Coefficient	0.095	Maximum Pressure Differential	250 psi (DC)
Voltage (V)	12 VDC	Seal Material	NBR
Mechanical Option	No Option	Orifice Main (inch)	3/64
Power (Watts)	10 Watt (DC)	Coil Type	DIN Form A, Class H
Flow Factor Main (Cv)	0.062	Maximum Pressure Differential (psi)	250 psi (DC)
