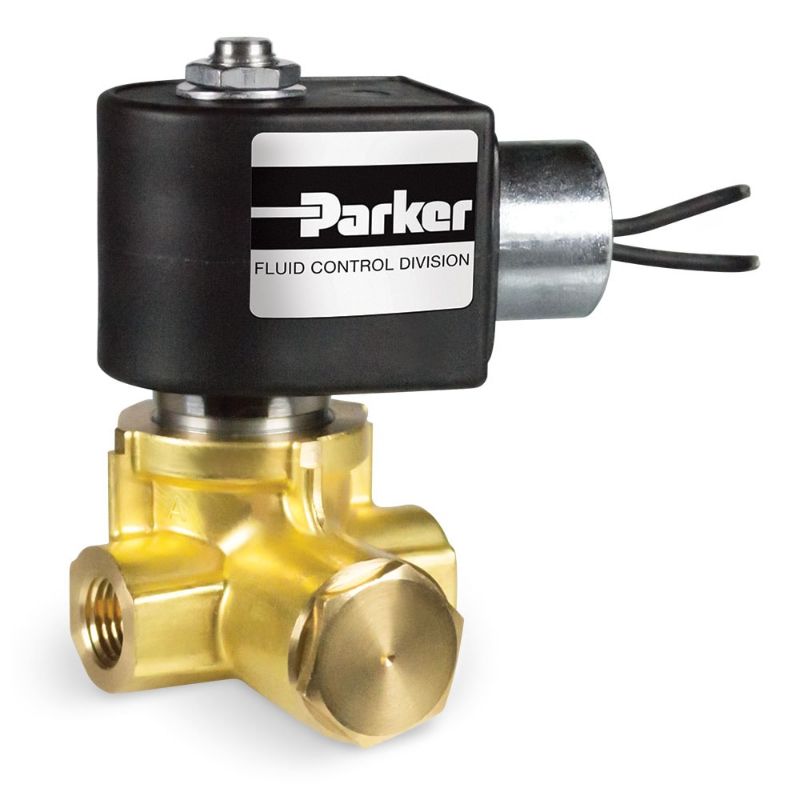

Parker 7122KBN2LF00N0H111C2 - Parker 2-Way Normally Open, 1/4" NPT General Purpose Solenoid Valves

Parker 2-Way Normally Open, 1/4" NPT Solenoid Valves provide operating pressures up to 300 PSI and flow factors up to .96 CV's. They have brass bodies, multiple mounting positions and coil options for all general purpose flow control applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7122KBN2LF00N0H111C2

$0.01

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Port Type	NPT
Input Voltage	24.0	Port Size	1/4
Body Material	Brass	Division	Fluid Control Division
Media	General Purpose for Air	Function	Normally Open (NO)
Valve Type	2-Way	Actuation Type	Direct Acting
Orifice 2 Size	n/a	Number of Ports	2
Flow Coefficient 2	n/a	Minimum Fluid Temperature	0
Minimum Pressure Differential	0	Product Series	7000 Series
Power Consumption	10 W (DC)	Orifice 1 Size	3/32
Coil Type	1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9	Seal Material	PCTFE
Flow Coefficient 1	0.21	Coil Specifications Met	NEMA 9
Maximum Fluid Temperature	165	Maximum Pressure Differential	175 psi (DC)
Voltage (V)	24 VDC	Orifice 1 Size (inch)	3/32
Coil Type	1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9	Power (Watts)	10 Watt (DC)
Seal Material	PCTFE	Flow Factor 1 (Cv)	0.21
Maximum Pressure Differential (psi)	175 psi (DC)
