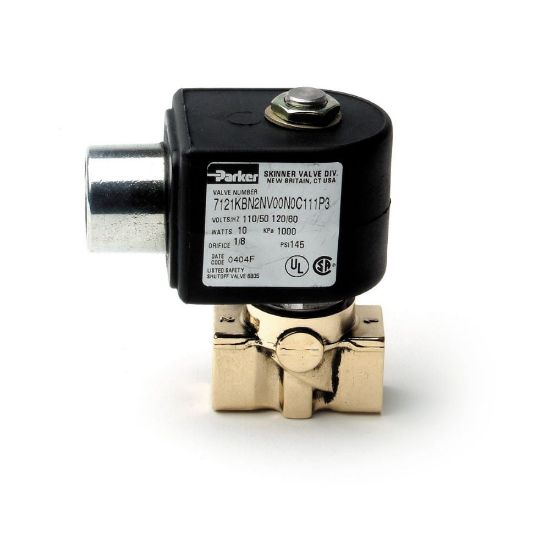

Parker 7121KBN3UV00N0C222Q3 - Parker 2-Way Normally Closed, 3/8" NPT General Purpose Solenoid Valves

Parker 2-Way Normally Closed, 3/8" NPT Solenoid Valves provide operating pressures up to 600 PSI and flow factors up to 5.5 CV's. They offer multiple body materials, mounting positions and coil options for all general purpose flow control applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7121KBN3UV00N0C222Q3

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Port Size	3/8	Port Type	NPT
Body Material	Brass	Division	Fluid Control Division
Media	General Purpose for Air	Function	Normally Closed (NC)
Valve Type	2-Way	Input Voltage	220/50 to 240/60
Actuation Type	Direct Acting	Orifice 2 Size	n/a
Number of Ports	2	Flow Coefficient 2	n/a
Coil Specifications Met	NEMA 4X	Minimum Fluid Temperature	0
Minimum Pressure Differential	0	Seal Material	FKM
Maximum Fluid Temperature	185	Power Consumption	10 W (AC)
Product Series	7000 Series	Maximum Pressure Differential	55 psi (AC)
Coil Type	1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X	Orifice 1 Size	7/16
Flow Coefficient 1	0.83	Body Material	BRASS
Voltage (V)	220/50-240/60	Seal Material	FKM
Power (Watts)	10 Watt (AC)	Coil Type	1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X
Flow Factor 1 (Cv)	0.83	Orifice 1 Size (inch)	7/16
Maximum Pressure Differential (psi)	55 psi (AC)
