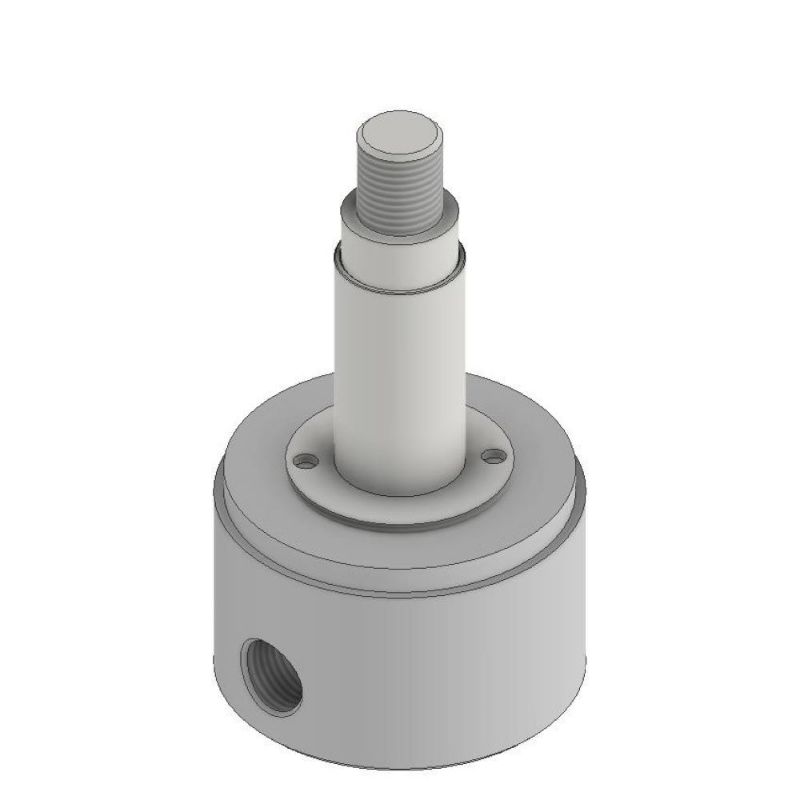

Parker 71216SN1BL00 - 6 Family - Direct Acting High Pressure Valves

These unique needle-in-seat high pressure valves direct-acting valves deliver long life at high pressures thanks to robust fundamentals and technopolymer sealing surfaces. These valves must be mounted upright; with solenoid coils vertical and upright

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 71216SN1BL00

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Port Type	NPT	Division	Fluid Control Division
Body Material	Stainless Steel	Actuation Type	Direct Acting
Media	General Purpose	Function	Normally Closed
Input Voltage	Pressure Vessel Only	Minimum Pressure Differential	0.0 psi
Insulation Class	N/A	Specifications Met	N/A
Valve Configuration	2 Way	Ingress Protection Rating	N/A
Port Size	1/8 inch	Preventive Maintenance Kit	n/a
Orifice Size	1/32 inch	Coil Type	Requires Coil from Chart 7 or Chart 8
Seal Material	NYLON	Power Consumption	Pressure Vessel Only
Maximum Fluid Temperature	185.0 °F	Maximum Pressure Differential	Requires Coil from Chart 7 or Chart 8
Installation	IOM 7206	Main Flow Coefficient	0.021 Cv
Maximum Ambient Temperature	150 (10 watt), 77 (22 watt) °F	Port Type	NPT
Body Material	Stainless Steel	Media	General Purpose
Function	Normally Closed	Input Voltage	Pressure Vessel Only
Insulation Class	N/A	Specifications Met	N/A
Valve Configuration	2 Way	Ingress Protection Rating	N/A
Minimum Pressure Differential	0.0	Coil Type	Requires Coil from Chart 7 or Chart 8
Seal Material	NYLON	Port Size	1/8
Installation	IOM 7206	Orifice Size	1/32
Actuation Type	Direct Acting	Power Consumption	Pressure Vessel Only
Main Flow Coefficient	0.021	Maximum Fluid Temperature	185.0
Preventive Maintenance Kit	N/A	Maximum Ambient Temperature	150 (10 watt), 77 (22 watt)
Maximum Pressure Differential	Requires Coil from Chart 7 or Chart 8
