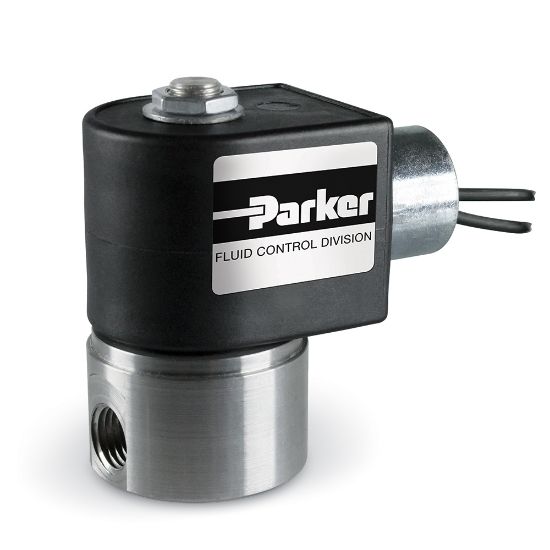

Parker 71215SN21N00N0C111Q3 - Parker 2-Way Normally Closed, 1/4" NPT General Purpose Solenoid Valves

Parker 2-Way Normally Closed, 1/4" NPT Solenoid Valves provide operating pressures up to 600 PSI and flow factors up to 2.5 CV's. They offer multiple body materials, mounting positions and coil options for all general purpose flow control applications.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 71215SN21N00N0C111Q3

Products specifications

Attribute name	Attribute value
Port Type	NPT	Port Size	1/4
Division	Fluid Control Division	Media	General Purpose for Air
Function	Normally Closed (NC)	Coil Type	1/2" Conduit, 18" Leads
Valve Type	2-Way	Body Material	Stainless Steel
Input Voltage	220/50 to 240/60	Seal Material	NBR
Actuation Type	Direct Acting	Orifice 2 Size	n/a
Number of Ports	2	Flow Coefficient 2	n/a
Coil Specifications Met	NEMA 4X	Minimum Fluid Temperature	0
Minimum Pressure Differential	0	Orifice 1 Size	5/16
Flow Coefficient 1	1.1	Maximum Fluid Temperature	185
Power Consumption	10 W (AC)	Product Series	7000 Series
Maximum Pressure Differential	20 psi (AC)	Coil Type	1/2" Conduit, 18" Leads
Voltage (V)	220/50-240/60	Seal Material	NBR
Flow Factor 1 (Cv)	1.1	Orifice 1 Size (inch)	5/16
Power (Watts)	10 Watts (AC)	Body Material	Stainless
