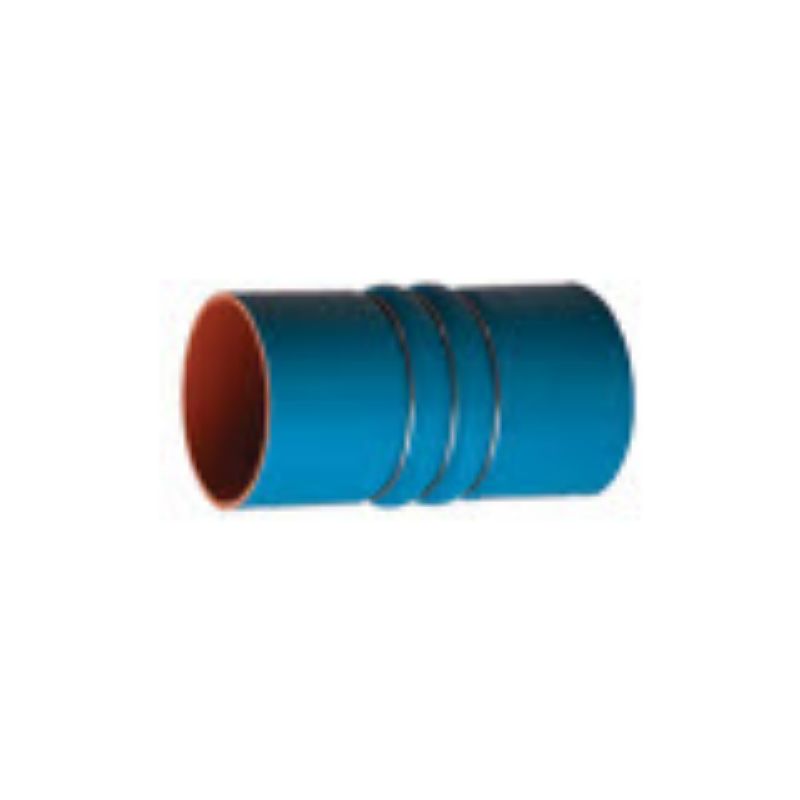

Parker 6824-35006000 - Silicone High Temperature Charge Air Cooler Hose, Series 6824

Silicone High Temperature Charge Air Cooler Hose is designed to connect, align and transfer the intake air from the charging system of heavy duty engine applications to 350°F and 25 psi, Series 6824

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 6824-35006000

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Inside Diameter	3-1/2 inch	Minimum Burst Pressure	80 psi
Cover Color	Blue	Maximum Operating Temperature	500 °F
Cover Material	Silicone	Weight	0.90 kg/m
Minimum Bend Radius	n/a	Application	Silicone Coolant
Hose Inner Tube Material	Brick Red	Hose Reinforcement Material	4 Plies of High Temperature Textile (with external Stainless Steel Retaining Rings)
Media	Air (Hot Air)	Outside Diameter	97.0 mm
Minimum Operating Temperature	-54 °C	Maximum Operating Pressure	0.6 MPa
Specifications Met	SAE J20R5	Division	Hose Products Division
Standard Package Quantity	6 x 6-in lg	Hose I.D. (inch)	3-1/2
Minimum Burst Pressure (psi)	80
