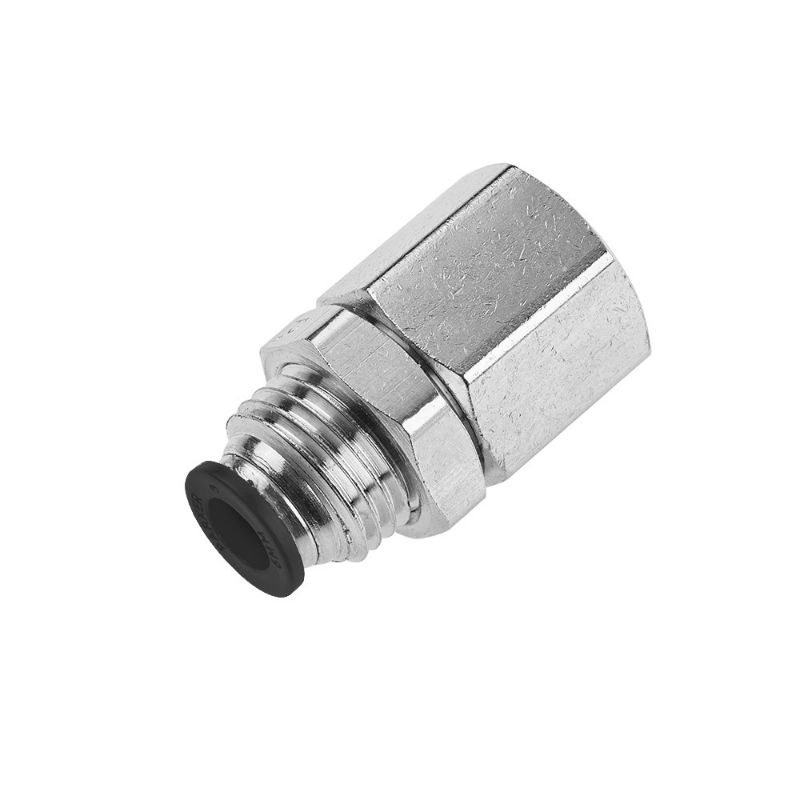

Parker 66PLPBH-6-6 - Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

AFP Availability:	Quote Required
Partner Available:	69 In Stock

Brand Parker

Part No. 66PLPBH-6-6

$16.02/each

Products specifications

Attribute name	Attribute value
UOM	EA	Application	Vacuum
Minimum Operating Temperature	0 °F	Division	Fluid System Connectors Division
Body Material	Brass, Nickel-plated	Industry	Semiconductor
Seal Material	Nitrile	Maximum Operating Pressure	20.6 bar
Gripping Ring Material	Stainless Steel	Brand	Parker
Specifications Met	UL 94 V-0	Tube Material	Polyethylene
Division	Fluid System Connectors Division	Vacuum Pressure Rating	28 Inch-Hg
Dimensional Weight	0.2179 lb	For Fluid Type	Air
Materials of Construction	PVDF (Button)	Region of Origin	United States
Hex Size	1 inch	Technology	Pneumatics
Maximum Operating Temperature	93.3 °C	Connection 1 Size	3/8"
Connection 2 Size	3/8"	Connection 1 Type	Push-to-Connect
Configuration	Tube to Female Pipe	Connection 2 Type	Female NPTF
Product Style	Bulkhead
