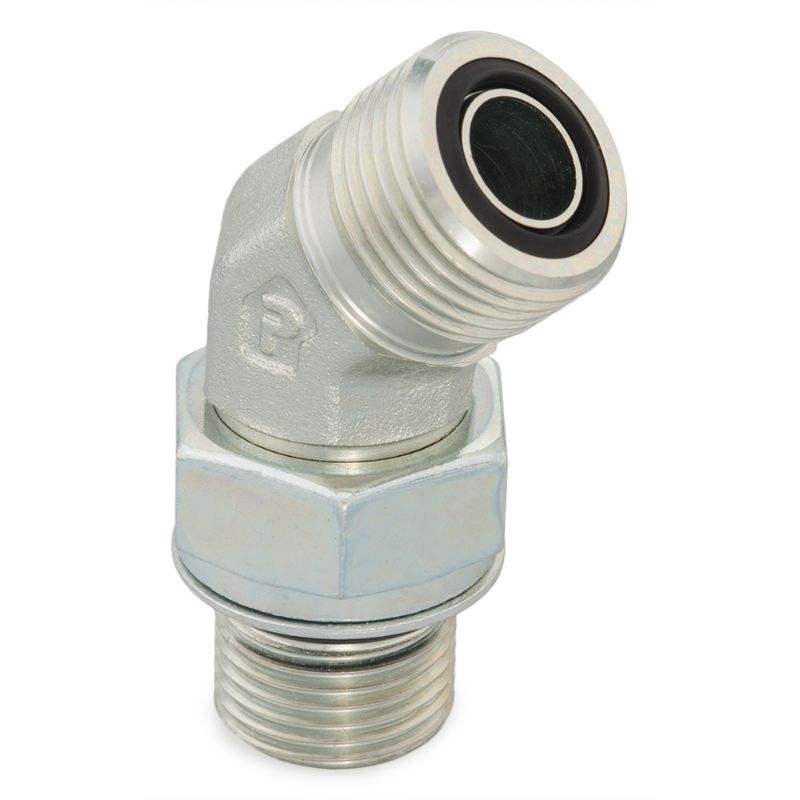

Parker 24M48V87OMLOS - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Name: Parker 24M48V87OMLOS - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters
SKU: 24M48V87OMLOS
Price: 84.43 USD
Availability: InStock

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

AFP Availability:

8 In Stock

North Chesterfield, VA

Partner Available:

Quote Required

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 24M48V87OMLOS

$84.43/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Tube Outside Diameter	1 1/2
O-Ring Material	90 Durometer Nitrile	Connection 4 Type	na
Division	Tube Fittings Division	Connection Type	O-ring Face Seal
Body Material	Steel	Connection 2 Type	Male ISO 6149
Connection 4 Tube Outside Diameter	na	Connection 1 Type	Male O-Ring Face Seal
Specifications Met	SAE J1453, ISO 8434-3	Maximum Dynamic Pressure	4000
Connection 2 Thread Size	na	Shape	45° Elbow
Connection 2 Tube Outside Diameter	na	Connection 3 Tube Outside Diameter	na
Connection 3 Type	na	Connection 3 Thread Size	na

Product resources

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382861TA-O-Lok (PDF)

Literature and Reference Materials
