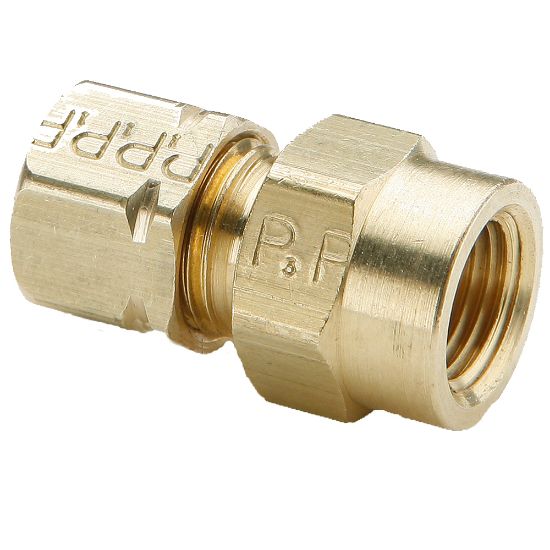

Parker 66CA-10-8 - Brass Compression Fittings, Compress-Align

Parker's Compress-Align fittings require no flaring, soldering or other preparation of tubing. The captive sleeve is always oriented for correct installation, visible for inspection before and after installation.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 66CA-10-8

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	Maximum Operating Temperature	250 °F
Connection Type	NPTF	For Fluid Type	Inert Gases
Maximum Operating Pressure	2800 psi	Minimum Operating Temperature	-54 °C
Materials of Construction	Brass (Nut)	Application	Dispensing
Tube Material	Aluminum	Body Material	Brass
Body Material	BRASS	Connection 1 Tube Outside Diameter	5/8" (O.D.)
Connection 2 Type	Female Pipe	Product Style	Connector
Connection 2 Thread Size	1/2"	Connection 1 Type	Compression
Configuration	Tube to Female Pipe
