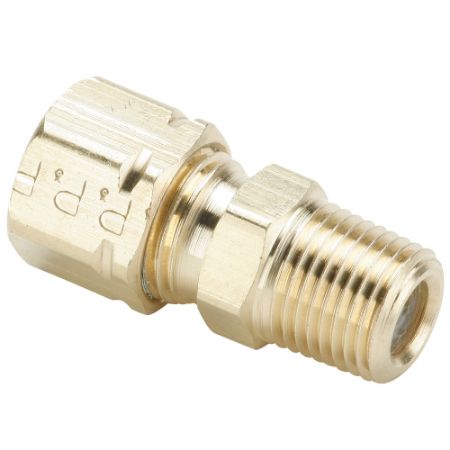

Brass Compression Fittings, Compress-Align
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
AFP Industries stocks this Parker series for quote or purchase, with interchange support and southeast warehouse availability.
Parker's economical Compress-Align fittings are pre-assembled with a captive sleeve which is always oriented correctly for faster assembly. The captive sleeve gives a visible inspection before and after installation and the design of the sleeve aligns to seal even out-of-round tubing. Compress-Align can be used in many areas where flare fittings are used due to the higher pressure rating, meaning no flaring, soldering or tube preparation resulting in faster installation. Compress-Align bodies are interchangeable with standard compression bodies so inventory is decreased.
Use with copper, aluminum and the following Parker Parflex Division tubing.
• Polyethylene
• Nylon
• Polypropylene
• PTFE
• FEP
• PFA
Markets:
• Industrial
• Pneumatic
• Packaging
• Automation
• Chemical
• Compressors
• Water filtration
Features/Benefits:
• All brass construction
• Captive sleeve
• Higher working pressures versus standard compression fitting
• Bodies interchangeable with standard compression bodies
• Economical
• One wrench turn from finger tight for assembly for all sizes
• 1/8" through 1" sizes available
• U.L. listed for flammable liquids
Applications:
• Air lines
• Lubrication lines
• Fluid transfer
• Chemical dispensing
• Cooling lines
• Machine tool
Custom configurations and sizes are available upon request. Contact us for additional information.
| Action | Part No. | Availability | Partner Available | Price | UOM | Tube Material | Maximum Operating Pressure | Connection Type | Division | Maximum Operating Temperature | Media | Nut Material | Body Material | Minimum Operating Temperature | Sleeve Material | Application | Shape | Connection 1 Tube Outside Diameter | Configuration | Body Material | Connection 1 Type | Connection 2 Type | Connection 2 Tube Outside Diameter | Dimensional Weight | Connection 3 Type | Connection 3 Tube Outside Diameter | Materials of Construction | For Fluid Type | Connection 2 Thread Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 164CA-10 | Quote Required | 4 In Stock | $63.86/each | EA | Copper, Aluminum, TFE, FEA, PFA, Thermoplastic | 2800 psi | NPTF | Fluid System Connectors Division | 121 °C | Water, air, inert and non-combustible gasses | Brass | Brass | -54 °C | Brass | Compressors, Machine Tools, Dispensing, Pumps, Purification | Tee | 5/8" (O.D.) | Tube to Tube | Brass, Forged | Compression | Compression | 5/8" (O.D.) | |||||||
| 164CA-12 | Quote Required | 1 Limited Stock | $66.69/each | EA | Copper, Aluminum, TFE, FEA, PFA, Thermoplastic | 2800 psi | NPTF | Fluid System Connectors Division | 250 °F | Water, air, inert and non-combustible gasses | Brass | Brass | -65 °F | Brass | Compressors, Machine Tools, Dispensing, Pumps, Purification | Tee | 3/4" (O.D.) | Tube to Tube | Brass, Forged | Compression | Compression | 3/4" (O.D.) | |||||||
| 164CA-2 | 24 In Stock | 93 In Stock | $19.77/each | EA | Copper, Aluminum, TFE, FEA, PFA, Thermoplastic | 193 bar | NPTF | Fluid System Connectors Division | 250 °F | Water, air, inert and non-combustible gasses | Brass | Brass | -54 °C | Brass | Compressors, Machine Tools, Dispensing, Pumps, Purification | Tee | 1/8" (O.D.) | Tube to Tube | Brass, Forged | Compression | Compression | 1/8" (O.D.) | |||||||
| 164CA-4 | 430 In Stock | 725 In Stock | $13.02/each | EA | Copper, Aluminum, TFE, FEA, PFA, Thermoplastic | 2800 psi | NPTF | Fluid System Connectors Division | 121 °C | Water, air, inert and non-combustible gasses | Brass | Brass | -54 °C | Brass | Compressors, Machine Tools, Dispensing, Pumps, Purification | Tee | 1/4" (O.D.) | Tube to Tube | Brass, Forged | Compression | Compression | 1/4" (O.D.) | 0.1104 lb | ||||||
| 164CA-5 | 14 In Stock | 67 In Stock | $18.23/each | EA | Copper, Aluminum, TFE, FEA, PFA, Thermoplastic | 193 bar | NPTF | Fluid System Connectors Division | 121 °C | Water, air, inert and non-combustible gasses | Brass | Brass | -65 °F | Brass | Compressors, Machine Tools, Dispensing, Pumps, Purification | Tee | 5/16" (O.D.) | Tube to Tube | Brass, Forged | Compression | Compression | 5/16" (O.D.) | |||||||
| 164CA-6 | 82 In Stock | 178 In Stock | $18.45/each | EA | Copper, Aluminum, TFE, FEA, PFA, Thermoplastic | 2800 psi | NPTF | Fluid System Connectors Division | 121 °C | Water, air, inert and non-combustible gasses | Brass | Brass | -54 °C | Brass | Compressors, Machine Tools, Dispensing, Pumps, Purification | Tee | 3/8" (O.D.) | Tube to Tube | Brass, Forged | Compression | Compression | 3/8" (O.D.) | 0.1104 lb | ||||||
| 164CA-6-4-4 | 4 In Stock | 6 In Stock | $26.36/each | EA | Copper, Aluminum, TFE, FEA, PFA, Thermoplastic | 2800 psi | NPTF | Fluid System Connectors Division | 250 °F | Water, air, inert and non-combustible gasses | Brass | Brass | -65 °F | Brass | Compressors, Machine Tools, Dispensing, Pumps, Purification | Tee | 3/8" (O.D.) | Tube to Tube | Brass, Forged | Compression | Compression | 1/4" (O.D.) | Compression | 1/4" (O.D.) | |||||
| 164CA-8 | 19 In Stock | 100 In Stock | $38.22/each | EA | Copper, Aluminum, TFE, FEA, PFA, Thermoplastic | 2800 psi | NPTF | Fluid System Connectors Division | 250 °F | Water, air, inert and non-combustible gasses | Brass | Brass | -65 °F | Brass | Compressors, Machine Tools, Dispensing, Pumps, Purification | Tee | 1/2" (O.D.) | Tube to Tube | Brass, Forged | Compression | Compression | 1/2" (O.D.) | 0.2759 lb | ||||||
| 165CA-10 | Quote Required | 2 Limited Stock | $55.14/each | EA | Copper, Aluminum, TFE, FEA, PFA, Thermoplastic | 193 bar | NPTF | Fluid System Connectors Division | 250 °F | Water, air, inert and non-combustible gasses | Brass | Brass | -54 °C | Brass | Compressors, Machine Tools, Dispensing, Pumps, Purification | Elbow 90° | 5/8" (O.D.) | Tube to Tube | Brass, Forged | Compression | Compression | 5/8" (O.D.) | |||||||
| 165CA-12 | Quote Required | 30 In Stock | $92.91/each | EA | Copper, Aluminum, TFE, FEA, PFA, Thermoplastic | 2800 psi | NPTF | Fluid System Connectors Division | 250 °F | Water, air, inert and non-combustible gasses | Brass | Brass | -54 °C | Brass | Compressors, Machine Tools, Dispensing, Pumps, Purification | Elbow 90° | 3/4" (O.D.) | Tube to Tube | Brass, Forged | Compression | Compression | 3/4" (O.D.) | |||||||
| 165CA-2 | 1 Limited Stock | 56 In Stock | $18.20/each | EA | Copper, Aluminum, TFE, FEA, PFA, Thermoplastic | 2800 psi | NPTF | Fluid System Connectors Division | 121 °C | Water, air, inert and non-combustible gasses | Brass | Brass | -54 °C | Brass | Compressors, Machine Tools, Dispensing, Pumps, Purification | Elbow 90° | 1/8" (O.D.) | Tube to Tube | Brass, Forged | Compression | Compression | 1/8" (O.D.) | |||||||
| 165CA-3 | Quote Required | 7 In Stock | $13.12/each | EA | Copper, Aluminum, TFE, FEA, PFA, Thermoplastic | 2800 psi | NPTF | Fluid System Connectors Division | 250 °F | Water, air, inert and non-combustible gasses | Brass | Brass | -54 °C | Brass | Compressors, Machine Tools, Dispensing, Pumps, Purification | Elbow 90° | 3/16" (O.D.) | Tube to Tube | Brass, Forged | Compression | Compression | 3/16" (O.D.) | 0.2759 lb | ||||||
| 165CA-4 | 85 In Stock | 85 In Stock | $8.48/each | EA | Copper, Aluminum, TFE, FEA, PFA, Thermoplastic | 193 bar | NPTF | Fluid System Connectors Division | 121 °C | Water, air, inert and non-combustible gasses | Brass | Brass | -54 °C | Brass | Compressors, Machine Tools, Dispensing, Pumps, Purification | Elbow 90° | 1/4" (O.D.) | Tube to Tube | Brass, Forged | Compression | Compression | 1/4" (O.D.) | 0.2759 lb | ||||||
| 165CA-5 | Quote Required | 74 In Stock | $14.59/each | EA | Copper, Aluminum, TFE, FEA, PFA, Thermoplastic | 2800 psi | NPTF | Fluid System Connectors Division | 250 °F | Water, air, inert and non-combustible gasses | Brass | Brass | -65 °F | Brass | Compressors, Machine Tools, Dispensing, Pumps, Purification | Elbow 90° | 5/16" (O.D.) | Tube to Tube | Brass, Forged | Compression | Compression | 5/16" (O.D.) | |||||||
| 165CA-6 | 14 In Stock | 471 In Stock | $12.89/each | EA | Copper, Aluminum, TFE, FEA, PFA, Thermoplastic | 193 bar | NPTF | Fluid System Connectors Division | 250 °F | Water, air, inert and non-combustible gasses | Brass | Brass | -65 °F | Brass | Compressors, Machine Tools, Dispensing, Pumps, Purification | Elbow 90° | 3/8" (O.D.) | Tube to Tube | Brass, Forged | Compression | Compression | 3/8" (O.D.) | 0.2759 lb | ||||||
| 165CA-8 | 11 In Stock | 41 In Stock | $29.91/each | EA | Copper, Aluminum, TFE, FEA, PFA, Thermoplastic | 2800 psi | NPTF | Fluid System Connectors Division | 121 °C | Water, air, inert and non-combustible gasses | Brass | Brass | -54 °C | Brass | Compressors, Machine Tools, Dispensing, Pumps, Purification | Elbow 90° | 1/2" (O.D.) | Tube to Tube | Brass, Forged | Compression | Compression | 1/2" (O.D.) | 0.2759 lb | ||||||
| 169CA-10-8 | 13 In Stock | 150 In Stock | $23.75/each | EA | PFA | 2800 psi | NPTF | Fluid System Connectors Division | 121 °C | Brass | -54 °C | Pumps | Elbow 90° | 5/8" (O.D.) | Tube to Pipe | Brass, Forged | Compression | Male Pipe | Brass (Sleeve) | Air | 1/2" | ||||||||
| 169CA-12-12 | Quote Required | 1 Limited Stock | $51.85/each | EA | FEA | 2800 psi | NPTF | Fluid System Connectors Division | 121 °C | Brass | -54 °C | Dispensing | Elbow 90° | 3/4" (O.D.) | Tube to Pipe | Brass, Forged | Compression | Male Pipe | 0.5519 lb | Brass (Nut) | Air | 3/4" | |||||||
| 169CA-12-8 | Quote Required | 14 In Stock | $59.05/each | EA | FEA | 2800 psi | NPTF | Fluid System Connectors Division | 121 °C | Brass | -65 °F | Pumps | Elbow 90° | 3/4" (O.D.) | Tube to Pipe | Brass, Forged | Compression | Male Pipe | 0.5519 lb | Brass (Sleeve) | Water | 1/2" | |||||||
| 169CA-3-2 | 15 In Stock | 460 In Stock | $6.68/each | EA | PFA | 2800 psi | NPTF | Fluid System Connectors Division | 121 °C | Brass | -54 °C | Dispensing | Elbow 90° | 3/16" (O.D.) | Tube to Pipe | Brass, Forged | Compression | Male Pipe | 0.2759 lb | Brass (Nut) | Inert Gases | 1/8" |
