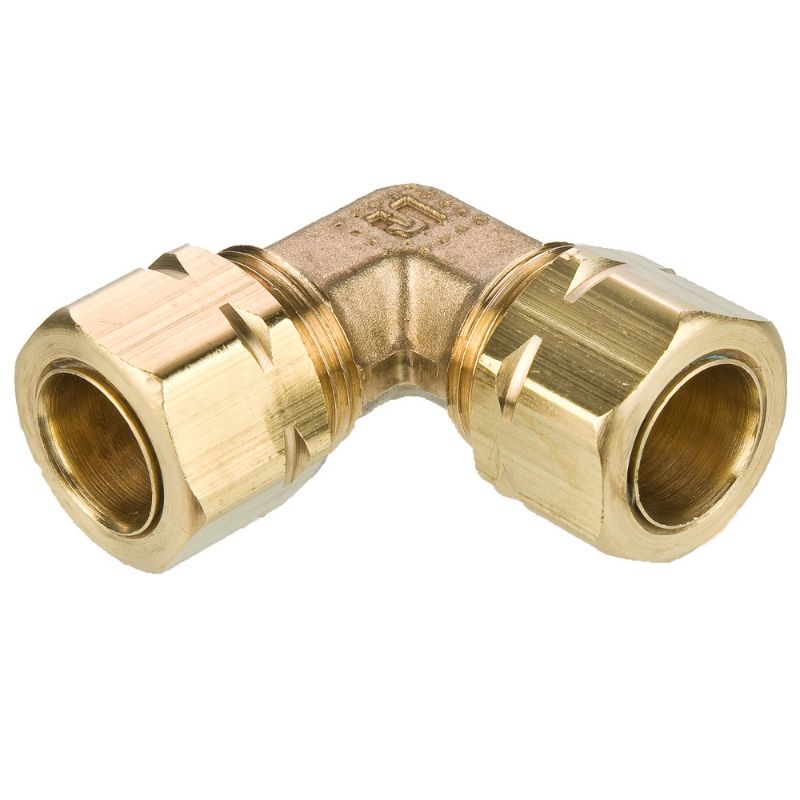

Parker 165CA-3 - Brass Compression Fittings, Compress-Align

Parker's Compress-Align fittings require no flaring, soldering or other preparation of tubing. The captive sleeve is always oriented for correct installation, visible for inspection before and after installation.

AFP Availability:	Quote Required
Partner Available:	7 In Stock

Brand Parker

Part No. 165CA-3

$13.12/each

Products specifications

Attribute name	Attribute value
UOM	EA	Application	Compressors, Machine Tools, Dispensing, Pumps, Purification
Tube Material	Copper, Aluminum, TFE, FEA, PFA, Thermoplastic	Sleeve Material	Brass
Maximum Operating Pressure	2800 psi	Division	Fluid System Connectors Division
Dimensional Weight	0.2759 lb	Connection Type	NPTF
Maximum Operating Temperature	250 °F	Nut Material	Brass
Media	Water, air, inert and non-combustible gasses	Minimum Operating Temperature	-54 °C
Body Material	Brass	Shape	Elbow 90°
Configuration	Tube to Tube	Body Material	Brass, Forged
Connection 1 Type	Compression	Connection 2 Type	Compression
Connection 1 Tube Outside Diameter	3/16" (O.D.)	Connection 2 Tube Outside Diameter	3/16" (O.D.)
