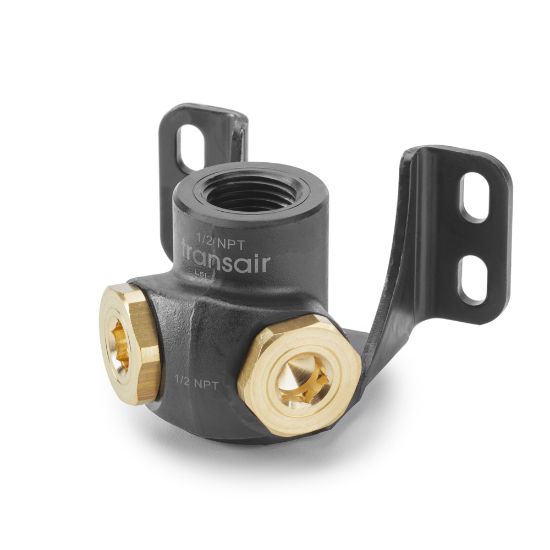

Parker 6688 22 22 - Transair® Wall Brackets for Aluminum Pipe

Transair® Wall Brackets are designed for quick connection of machinery or tools to compressed air piping systems or inert gas supply lines.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 6688 22 22

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Shape	Straight
Minimum Operating Temperature	-20 °C	Industry	General Industrial
Technology	Fluid & Gas Handling	Division	Fluid System Connectors Division
Assembly	n/a	Connection 2 Type	Female NPT
Division	Low Pressure Connectors Europe Division	Seal Material	NBR
Application	Compressed Air	Configuration	Port to Port
Specifications Met	CE	Maximum Operating Temperature	185 °F
For Fluid Type	Industrial Gas	Quantity per Box	1
Maximum Operating Pressure	16 bar	Body Material	Treated Brass
Assembly Time	0.2 Hours	Product Type	Wall Brackets
Connection 1 Size	NPT 1/2 inch	Connection 1 Type	Female NPT
Connection 2 Size	NPT 1/2 inch	Connection 3 Size	NPT 1/4 inch
Connection 3 Type	Female NPT	Weight	0,930 lb
Pipe Outside Diameter	1"\|1/2" inch	Pipe O.D. (mm)	N/A
Pipe O.D. (inch)	N/A	Connection Thread Size (inch)	1/2
Shape	Threaded 2 Port 90° Wall Bracket	Connection Type	Female Threaded NPT

Product resources

Compliance, Certifications & Safety

Transair Regulations & Certifications (PDF)

Literature and Reference Materials
