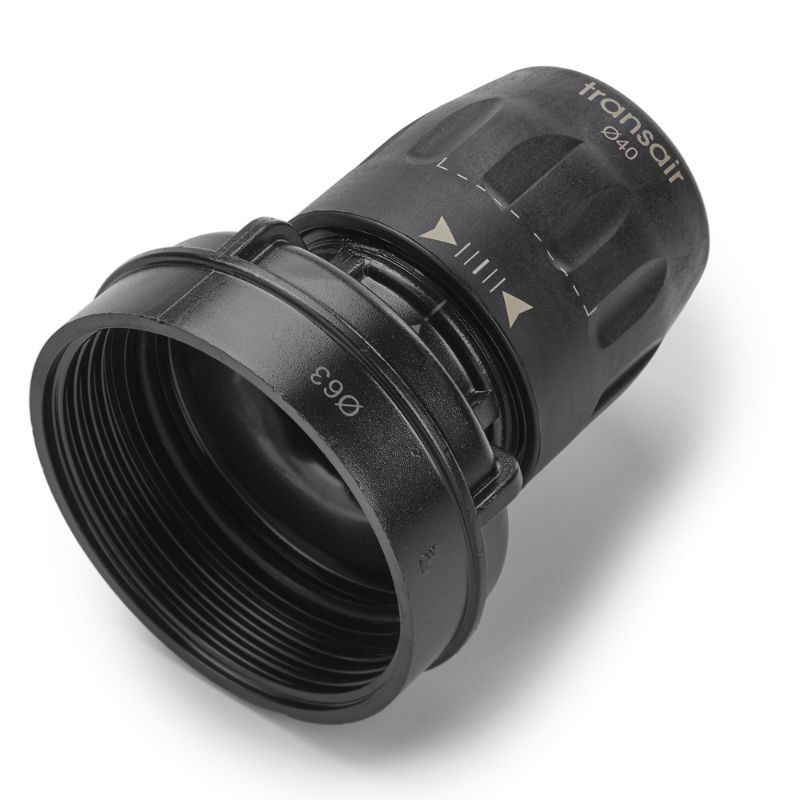

Parker 6666 25 50 - Transair® Fittings for Aluminum Pipe

Transair Fittings install fast and with minimal tooling required. All Transair fittings are designed to securely fit around Transair aluminum pipe, increasing system efficiency and preventing compressed air leaks.

AFP Availability:	Quote Required
Partner Available:	50 In Stock

Brand Parker

Part No. 6666 25 50

$63.79/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Size	25 mm
Body Material	Technical Polymer	Connection 2 Type	Pipe
Technology	Pneumatics	Quantity per Box	1
Specifications Met	ISO 8573 (Air Quality)	Product Type	Compressed Air Piping
Connection 1 Type	Pipe	Shape	Plug-In Reducer
Product Style	Plug-in Fitting	Minimum Operating Temperature	-4 °F
Division	Low Pressure Connectors Europe Division	Application	Inert Gas
Maximum Operating Pressure	16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca	Brand	Parker
Industry	General Industrial	Weight	0.45 lb
Division	Low Pressure Connectors Europe Division	For Fluid Type	Air
Assembly Time	0.06 Hours	Maximum Operating Temperature	185 °F
Vacuum Pressure Rating	0.03 inch-Hg	Configuration	Pipe to Swivel Port
Connection 2 Size	50 mm	Pipe O.D. (mm)	25
Pipe O.D. (inch)	1	Connection Thread Size (inch)	n/a
Silicone Free	Yes	Product Style	Pipe
Pipe O.D. 2 (mm)	50	Pipe O.D. 2 (inch)	2
