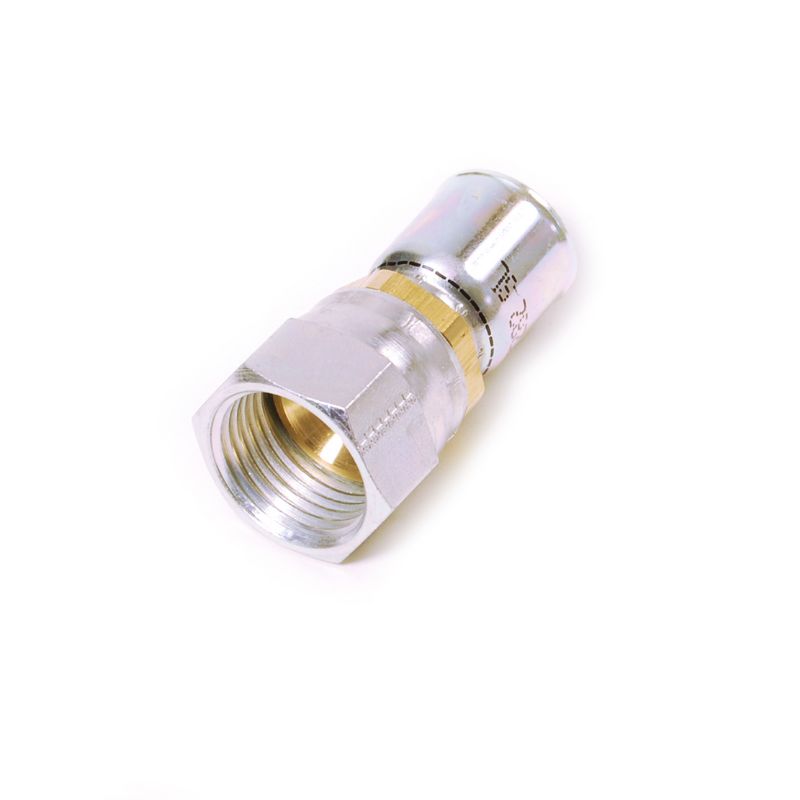

Parker 10691N-10-10 - Permanent Fittings for PTFE Hose - 91/91N

Name: Parker 10691N-10-10 - Permanent Fittings for PTFE Hose - 91/91N
SKU: 10691N-10-10
Price: 21.08 USD
Availability: InStock

Parker's 91/91N Series fittings are used with 919/919B, 919J, 919U, 929/929B, and 929BJ PTFE hoses from the Parflex division.

AFP Availability:

307 In Stock

North Chesterfield, VA	104
Sumter, SC	62
Summerville, SC	38
Fayetteville, NC	24
Grovetown, GA	17
Jacksonville, FL	15
Mooresville, NC	11
Ashland, VA	9 (Pickup only)
Norfolk, VA	8
Richmond, VA	7 (Pickup only)
Johnson City, TN	5 (Pickup only)
West Knoxville, TN	4
East Knoxville, TN	3

Partner Available:

1404 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 10691N-10-10

$21.08/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Parflex Division
Technology	Fluid & Gas Handling	Coating	Chromium 6 Free-plated
Connection 1 Size	1/2 inch Hose I.D.	Product Series	91N
Brand	Parker	For Fluid Type	Air (Pneumatic Media)
Fitting Length	52 mm	Configuration	Hose to Port
Dimensional Weight	0.0235 lb	Connection 2 Size	7/8"-14 inch Thread
Connection 1 Type	Hose	Tube Outside Diameter	n/a
Specifications Met	n/a	Hex Size 1	1 inch (see drawing legend H)
Industry	Transportation	Maximum Operating Pressure	3000 psi (Dependent on hose)
Connection Length	1-5/16 inch Cut-off allowance (see drawing legend B)	Body Material	Brass (Nipple)
Hex Size	13/16 inch (see drawing legend J)	Connection 2 Type	Swivel
Application	Hydraulics	Product Type	Hose Fittings
Shape	Straight	Division	Parflex Division
Product Style	Female JIC 37° - Swivel - Straight	Hose I.D. (inch)	0.5"
Connection 2 Size	7/8"-14	Length (inch)	2.03"
