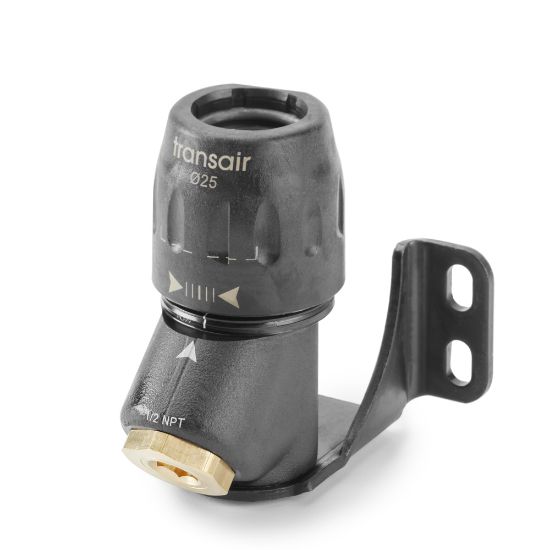

Parker 6640 17 22 - Transair® Wall Brackets for Aluminum Pipe

Transair® Wall Brackets are designed for quick connection of machinery or tools to compressed air piping systems or inert gas supply lines.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 6640 17 22

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Division	Fluid System Connectors Division
Assembly Time	0.15 Hours	Shape	Straight
Maximum Operating Temperature	85 °C	Minimum Operating Temperature	-20 °C
Industry	General Industrial	Technology	Fluid & Gas Handling
Division	Fluid System Connectors Division	Assembly	n/a
Connection 2 Type	Female NPT	Seal Material	NBR
Application	Inert Gases	Specifications Met	ASME B31.1 - 31.9
For Fluid Type	Air	Connection 1 Type	Pipe
Quantity per Box	1	Body Material	Technical Polymer
Configuration	Pipe to Port	Connection 1 Size	16.5 mm
Weight	0,526 kg	Product Type	Wall Brackets
Connection 2 Size	NPT 1/2 inch	Maximum Operating Pressure	232 psi 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/c
Connection 3 Size	NPT 1/4 inch	Connection 3 Type	Female NPT
Pipe O.D. (mm)	16.5	Pipe O.D. (inch)	1/2
Connection Thread Size (inch)	n/a	Shape	1 Port 45° Wall Bracket
